3.2.1 Numerical schemes

Wide variety of finite difference methods to solve equation ``i" in (72) (the scalar advection equation)

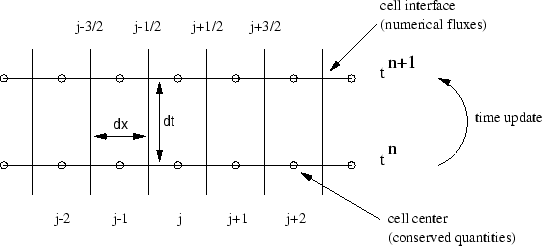

Finite difference methods are based on a discretization of the $x-t$ plane defined by the discrete mesh points $(x_j,t^n)$

\begin{displaymath}
x_j = (j-1/2)\Delta x,      j=1,2,\ldots
\end{displaymath} (74)


\begin{displaymath}
t^n = n\Delta t,      n=0,1,2,\ldots
\end{displaymath} (75)

where $\Delta x$ and $\Delta t$ are, respectively, the cell width and the time step

A finite difference scheme is a time-marching procedure which permits to obtain approximations to the solution in the mesh points, $w_j^{n+1}$, from the approximations in previous time steps $w_j^{n}$

\begin{figure}\centerline{\psfig{figure=../FIGURES_DATABASE/grid2.eps,width=12cm}}\end{figure}
