Playing with hashing

The goal is to define a hash function that allows the distribution of objects (data, files, web pages, etc.) in a fixed number of destinations (memory positions, disks, caches, etc.) in such a way that when we already have objects distributed in those destinations, the computational cost of adding new storage destinations is low.

The first step is to map an object \(o\) to \(\mathbb{N}\): \[ f(o) \longrightarrow n, \; n \in \mathbb{N}\]

Next we need to obtain a number from 1 to the number of destinations (\(N\)): \[h(n) \longrightarrow \{1,...,N\}\]

I will assume that the objects are Strings.

We will use the following funtion \(f\) to map Strings to integers: \[f(o) = \textrm{decimal}(\textrm{getBits}(\textrm{sha256}(o)),16)\] where getBits(s,b) return b bits of the first argument.

We will try with two different functions \(h\) and we will check how many objects (already stored) must be moved when we add 2 more destinations.

The first hash function is: \[h(n) = \textrm{mod}(n,N) \]

We are going to obtain the destination (assuming we have \(N=20\)) of 1000 objects. Then we will add two more destinations and recalculate the destination of all the objects (changing the value of \(N\) from 20 to 22). Finally, we will obtain the percentage of objects that should be moved.

This is the Octave code:

% Number of objects
D=1000;
x=cell(D,1);
% Let's generate objects
for i=1:D
  x{i}=['/jgutierrez/masterTWCAM/videos/video_promocion',num2str(i),'.mp4'];
endfor

% Assume we have 20 destinations
N=20;
dest=zeros(D,1);
for i=1:D
  % Obtain a number for each object
  f = hex2dec(substr(hash('sha256',x{i}),1,4));
  % Apply function to get a number from {0,19} to get destination of object
  dest(i)=mod(f,N);
endfor

% Assume we add 2 destinations
N=22;
dest_2=zeros(D,1);
for i=1:D
  % Obtain a number for each object
  f = hex2dec(substr(hash('sha256',x{i}),1,4));
  % Apply the same function to get a number from {0,21}
  dest_2(i)=mod(f,N);
endfor

%Distribution of objects in destinations:
dist=zeros(N,1);
for i=1:N
  dist(i)=sum(dest_2==i);
endfor

bar([1:N],dist)

% Check how many objects must be moved
diff=dest-dest_2;
nobjs=sum(abs(diff)>0);

disp('Percentage objects that should be moved: ')
100*(nobjs/D)

Percentage objects that should be moved:
ans =  91.400

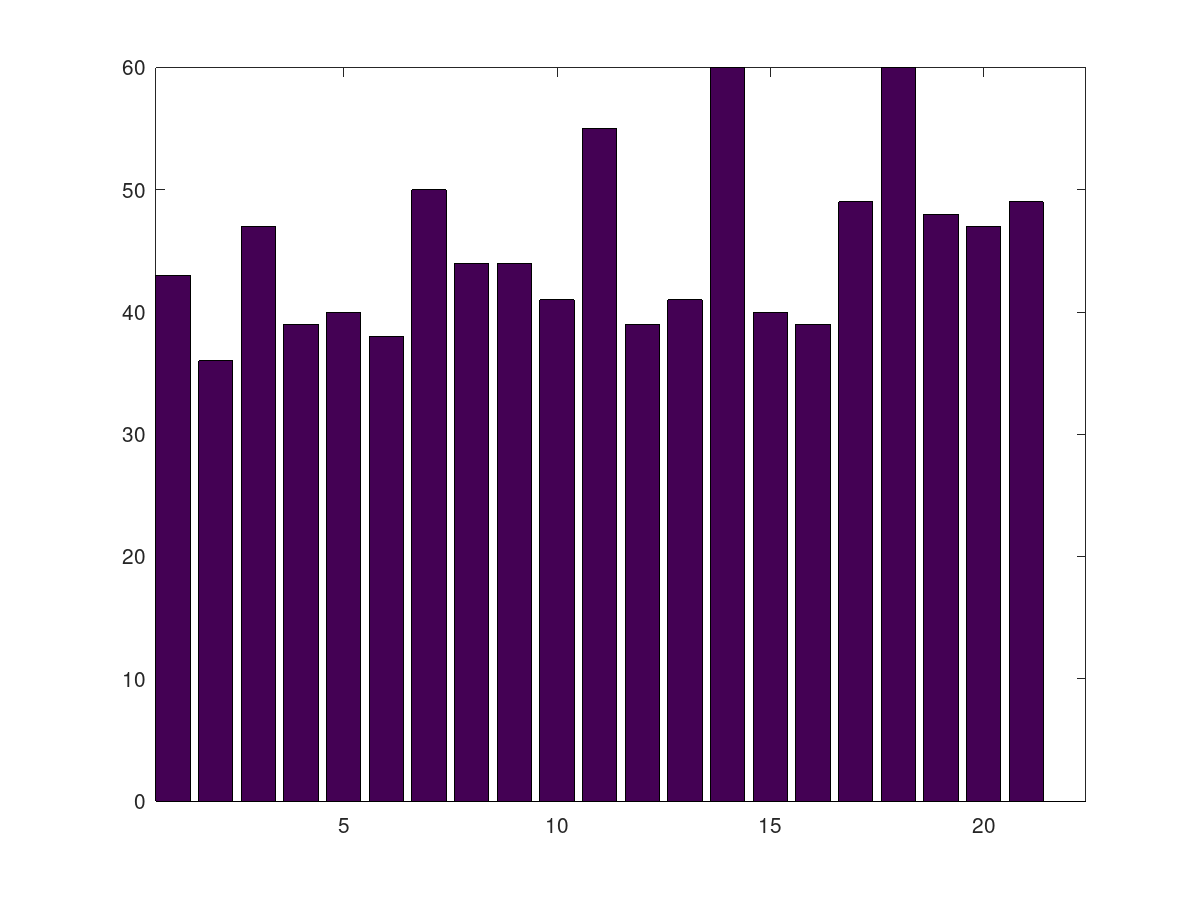

The following figure shows the number of objects per destination:

In this case we are going to distribute integers between \([0,2^{16}]\) and store those numbers (I will call these numbers "the ring" as it is the name that is used in swift):

N=20;
ring=zeros(1,N);
for i=1:N
   ring(i) = hex2dec(substr(hash('sha256',['destino' num2str(i)]),1,4));
end
ring

ring =

 Columns 1 through 10:

   48602   22285   36368    3063    8548   24962   42288   20200   26066   62521

 Columns 11 through 20:

    5594   26554   11579   24774   28534   55909   18327   42345   54518   49062

To obtain the destination of an object apply the following function (given the integer for this object, obtain the position of the nearest ring number):

diff=abs(ring-n);
vmin=min(diff);
pos=find(diff==vmin);

This is the final code (we only change the \(h\) function):

% Number of objects
D=1000;
x=cell(D,1);
for i=1:D
  x{i}=['/jgutierrez/masterTWCAM/videos/video_promocion',num2str(i),'.mp4'];
endfor

% Assume we have 20 destination to put those objects
% Build the ring:
N=20;
ring=zeros(N,1);
for i=1:N
   ring(i) = hex2dec(substr(hash('sha256',['destino' num2str(i)]),1,4));
end

% Obtain the destination of each object
dest=zeros(D,1);
for i=1:D
  % Obtain a number from the object
  f = hex2dec(substr(hash('sha256',x{i}),1,4));
  % Check the position of the nearest number in the ring
  diff=abs(ring-f);
  vmin=min(diff);
  pos=find(diff==vmin);
  dest(i)=pos;
endfor

% We add 2 more destinations
% Rebuild ring
N=22;
ring2=zeros(N,1);
for i=1:N
   ring2(i) = hex2dec(substr(hash('sha256',['destino' num2str(i)]),1,4));
end

% Obtain the destination of each object
dest_2=zeros(D,1);
for i=1:D
    % Obtain a number from the object
    f = hex2dec(substr(hash('sha256',x{i}),1,4));
    % Check the position of the nearest number in the ring
    diff=abs(ring2-f);
    vmin=min(diff);
    pos=find(diff==vmin);
    dest_2(i)=pos;
endfor

%Distribution of objects in destinations:
dist=zeros(N,1);
for i=1:N
  dist(i)=sum(dest_2==i);
endfor

bar([1:N],dist)

% Check how many objects must be moved
diff=dest-dest_2;
nobjs=sum(abs(diff)>0);

disp('Percentage objects that should be moved: ')
100*(nobjs/D)

Percentage objects that should be moved:
ans =  6.4000

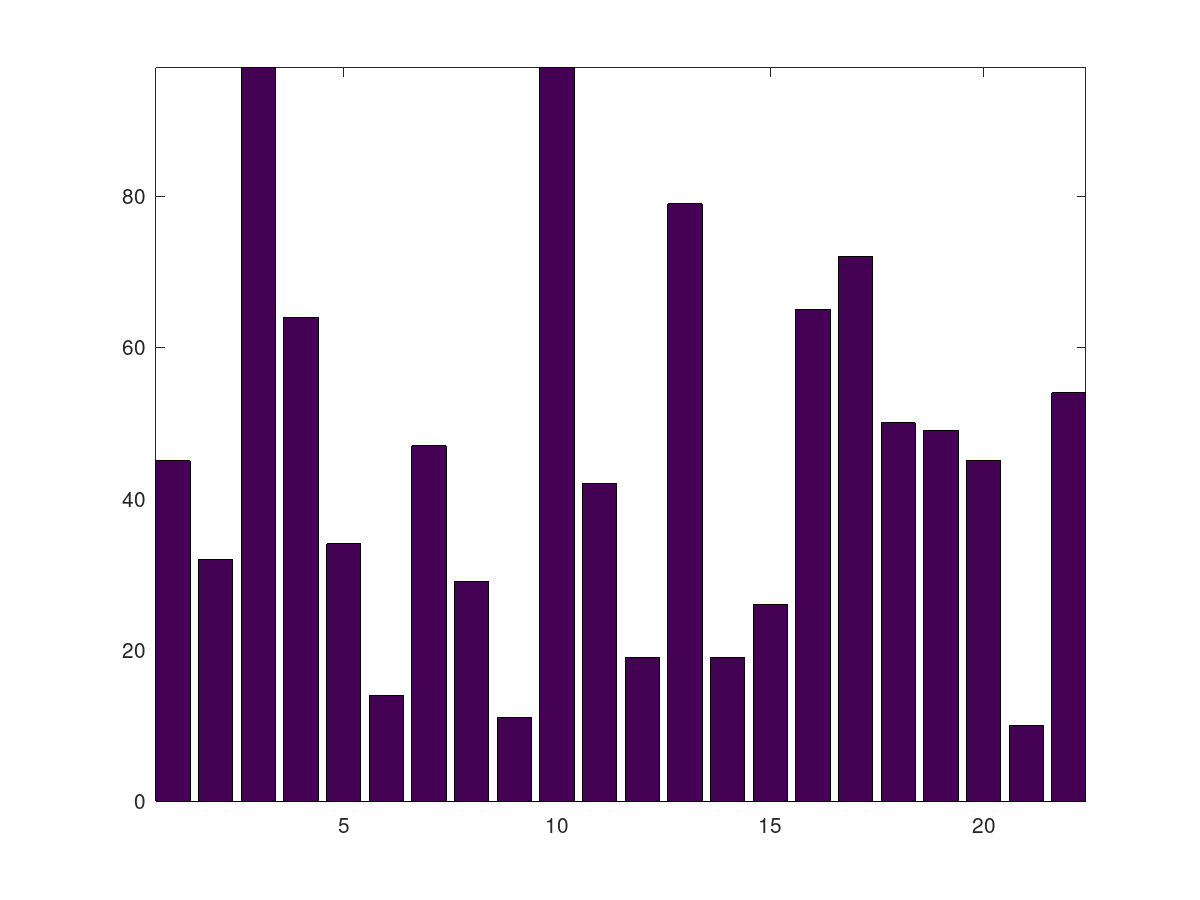

The following figure shows the number of objects per destination:

We see that in this case, we need to move 6.4% of the objects while in the first case 91.4% of the objects needed to be relocated.

If you have a lot of objects already stored in a distributed system this is a significant saving, and can reduce system downtime.
