SURFACE FLUXES AND METEOROLOGICAL DATA

The University of Castilla-La Mancha, through the "Escuela Técnica Superior de Ingenieros Agrónomos", owns three agroclimatologic stations in the study area of Barrax:

  • Las Tiesas-Anchor Station (39º 02' 31" N; 2º 04' 55" W)
  • Las Tiesas-Lisímetro (39º 03' 30" N; 2º 05' 24" W)
  • Blancares (39º 06' 45" N; 2º 06' 40" W)

Also, the University of Castilla-La Mancha has another permanet station of type "Anchor Station" in Tomelloso (only used in 1999 campaign), located at the Centro Regional de Experimentación Vitivinícola (39º 10' 22" N; 2º 59' 48" W).


Description of Las Tiesas and Tomelloso Anchor Stations

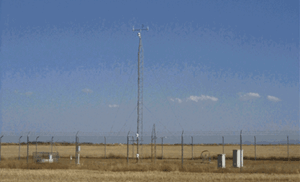

    Las Tiesas - Anchor Station

    Both stations belong to the Permanent Station Network of the University of Castilla-La Mancha and are connected by modem with the central computer at the Institut for Regional Development in Albacete. The data is compiled and stored automatically for later treatment, as well as being accessible inreal time. Measurements are done by all sensors every 30 seconds and arestored every 10 minutes.

Anemometer (10m) Soil moisture (0,90m)
Wind direction (10m) Atmospheric pressure
Temperature and relative humidity (10m) Evaporation
Anemometer (2m) Precipitation
Temperature and relative humidity (2m) Reflected short radiation
Temperature (0,5m) Shortwavelength net radiation
Shortwavelength incident radiation Diffuse radiation
Soil temperature (0,50m) Long wavelength incident radiation
Soil thermal flux (0,05m) Long wavelength reflected radiation
Soil thermal flux (0,10m) Long wavelength net radiation
Soil thermal flux (0,20m) Soil temperature (0,10m)
Soil thermal flux (0,30m) Soil temperature (0,25m)
Soil moisture (0,30m) Soil temperature (0,35m)
Soil moisture (0,60m)



Description of Las Tiesas-Lisímetro Station


Agroclimatological station
Lisimetric Station
of "Las Tiesas"
Pluviometer
Temperature and Relative humidity (2m)
Temperature Sensor
Relative humidity Sensor
Piranometer (2m)
Radiometer neto (2m)
Anemometer (2m)
Reflectometer for hydric soil content
Evaporimetric bucket
CR10 Datalogger

Reference Lisimeter
Herbal Crop Lisimeter
Ligneous Crop Lisimeter



Description of Blancares Station

Pluviometer Moisture Sensor
Temperature and Relative Moisture (2m)

CR500 Datalogger
Temperature Sensor
