Chapter 10
Object Model

JavaScript is based on a simple object-oriented paradigm. An object is a construct with properties that are JavaScript variables or other objects. An object also has functions associated with it that are known as the object's methods. In addition to objects that are predefined in the Navigator client and the server, you can define your own objects.

This chapter describes how to use objects, properties, functions, and methods, and how to create your own objects.

Objects and Properties

A JavaScript object has properties associated with it. You access the properties of an object with a simple notation:

objectName.propertyName
Both the object name and property name are case sensitive. You define a property by assigning it a value. For example, suppose there is an object named myCar (for now, just assume the object already exists). You can give it properties named make, model, and year as follows:

myCar.make = "Ford"
myCar.model = "Mustang"
myCar.year = 69;
An array is an ordered set of values associated with a single variable name. Properties and arrays in JavaScript are intimately related; in fact, they are different interfaces to the same data structure. So, for example, you could access the properties of the myCar object as follows:

myCar["make"] = "Ford"
myCar["model"] = "Mustang"
myCar["year"] = 67
This type of array is known as an associative array, because each index element is also associated with a string value. To illustrate how this works, the following function displays the properties of the object when you pass the object and the object's name as arguments to the function:

function show_props(obj, obj_name) {
   var result = ""
   for (var i in obj)
      result += obj_name + "." + i + " = " + obj[i] + "\n"
   return result
}
So, the function call show_props(myCar, "myCar") would return the following:

myCar.make = Ford
myCar.model = Mustang
myCar.year = 67

Functions

 Functions are one of the fundamental building blocks in JavaScript. A function is a JavaScript procedure--a set of statements that performs a specific task. To use a function, you must first define it; then your script can call it.

Defining Functions

A function definition consists of the function keyword, followed by

In Navigator JavaScript, it is good practice to define all your functions in the HEAD of a page so that when a user loads the page, the functions are loaded first.

For example, here is the definition of a simple function named pretty_print:

function pretty_print(str) {
   document.write("<HR><P>" + str)
}
This function takes a string, str, as its argument, adds some HTML tags to it using the concatenation operator (+), and then displays the result to the current document using the write method.

In addition to defining functions as described here, you can also define Function objects, as described in "Function Object".

Using Functions

In a Navigator application, you can use (or call) any function defined in the current page. You can also use functions defined by other named windows or frames; for more information, see Chapter 4, "Using Windows and Frames." In a server-side JavaScript application, you can use any function compiled with the application.

Defining a function does not execute it. You have to call the function for it to do its work. For example, if you defined the example function pretty_print in the HEAD of the document, you could call it as follows:

<SCRIPT>
pretty_print("This is some text to display")
</SCRIPT>
The arguments of a function are not limited to strings and numbers. You can pass whole objects to a function, too. The show_props function (defined in "Objects and Properties") is an example of a function that takes an object as an argument.

A function can even be recursive, that is, it can call itself. For example, here is a function that computes factorials:

function factorial(n) {
   if ((n == 0) || (n == 1))
      return 1
   else {
      result = (n * factorial(n-1) )
   return result
   }
}
You could then display the factorials of one through five as follows:

for (x = 0; x < 5; x++) {
   document.write("<BR>", x, " factorial is ", factorial(x))
}
The results are:

0 factorial is 1
1 factorial is 1
2 factorial is 2
3 factorial is 6
4 factorial is 24
5 factorial is 120

Using the arguments Array

The arguments of a function are maintained in an array. Within a function, you can address the parameters passed to it as follows:

functionName.arguments[i]
where functionName is the name of the function and i is the ordinal number of the argument, starting at zero. So, the first argument passed to a function named myfunc would be myfunc.arguments[0]. The total number of arguments is indicated by the variable arguments.length.

Using the arguments array, you can call a function with more arguments than it is formally declared to accept using. This is often useful if you don't know in advance how many arguments will be passed to the function. You can use arguments.length to determine the number of arguments actually passed to the function, and then treat each argument using the arguments array.

For example, consider a function defined to create HTML lists. The only formal argument for the function is a string that is "U" for an unordered (bulleted) list or "O" for an ordered (numbered) list. The function is defined as follows:

function list(type) {
   document.write("<" + type + "L>") // begin list
   // iterate through arguments
   for (var i = 1; i < list.arguments.length; i++)
      document.write("<LI>" + list.arguments[i])
      document.write("</" + type + "L>") // end list
}
You can pass any number of arguments to this function, and it will then display each argument as an item in the indicated type of list. For example, the following call to the function

list("o", "one", 1967, "three", "etc., etc...")
results in this output:

1. one
2. 1967
3. three
4. etc., etc...

In JavaScript 1.2, arguments includes additional properties, as described in the JavaScript Reference.

Creating New Objects

Both client-side and server-side JavaScript have a number of predefined objects. In addition, you can create your own objects. In JavaScript 1.2, you can create objects using literal notation, as described in "Object Literals". Alternatively, you can create your own object with these two steps:

  1. Define the object type by writing a constructor function.

  2. Create an instance of the object with new.
To define an object type, create a function for the object type that specifies its name, properties, and methods. For example, suppose you want to create an object type for cars. You want this type of object to be called car, and you want it to have properties for make, model, year, and color. To do this, you would write the following function:

function car(make, model, year) {
   this.make = make
   this.model = model
   this.year = year
}
Notice the use of this to assign values to the object's properties based on the values passed to the function.

Now you can create an object called mycar as follows:

mycar = new car("Eagle", "Talon TSi", 1993)
This statement creates mycar and assigns it the specified values for its properties. Then the value of mycar.make is the string "Eagle", mycar.year is the integer 1993, and so on.

You can create any number of car objects by calls to new. For example,

kenscar = new car("Nissan", "300ZX", 1992)
vpgscar = new car("Mazda", "Miata", 1990)
An object can have a property that is itself another object. For example, suppose you define an object called person as follows:

function person(name, age, sex) {
   this.name = name
   this.age = age
   this.sex = sex
}
and then instantiate two new person objects as follows:

rand = new person("Rand McKinnon", 33, "M")
ken = new person("Ken Jones", 39, "M")
Then you can rewrite the definition of car to include an owner property that takes a person object, as follows:

function car(make, model, year, owner) {
   this.make = make
   this.model = model
   this.year = year
   this.owner = owner
}
To instantiate the new objects, you then use the following:

car1 = new car("Eagle", "Talon TSi", 1993, rand)
car2 = new car("Nissan", "300ZX", 1992, ken)
Notice that instead of passing a literal string or integer value when creating the new objects, the above statements pass the objects rand and ken as the arguments for the owners. Then if you want to find out the name of the owner of car2, you can access the following property:

car2.owner.name
Note that you can always add a property to a previously defined object. For example, the statement

car1.color = "black"
adds a property color to car1, and assigns it a value of "black." However, this does not affect any other objects. To add the new property to all objects of the same type, you have to add the property to the definition of the car object type.

Indexing Object Properties

In Navigator 2.0, you can refer to an object's properties by their property name or by their ordinal index. In Navigator 3.0 or later, however, if you initially define a property by its name, you must always refer to it by its name, and if you initially define a property by an index, you must always refer to it by its index.

This applies when you create an object and its properties with a constructor function, as in the above example of the Car object type, and when you define individual properties explicitly (for example, myCar.color = "red"). So if you define object properties initially with an index, such as myCar[5] = "25 mpg", you can subsequently refer to the property as myCar[5].

The exception to this rule is objects reflected from HTML, such as the forms array. You can always refer objects in these arrays by either their ordinal number (based on where they appear in the document) or their name (if defined). For example, if the second <FORM> tag in a document has a NAME attribute of "myForm", you can refer to the form as document.forms[1] or document.forms["myForm"] or document.myForm.

Defining Properties for an Object Type

You can add a property to a previously defined object type by using the prototype property. This defines a property that is shared by all objects of the specified type, rather than by just one instance of the object. The following code adds a color property to all objects of type car, and then assigns a value to the color property of the object car1. For more information, see the prototype property of the Function object in the JavaScript Reference.

Car.prototype.color=null
car1.color="black"
birthday.description="The day you were born"

Defining Methods

 A method is a function associated with an object. You define a method the same way you define a standard function. Then you use the following syntax to associate the function with an existing object:

object.methodname = function_name
where object is an existing object, methodname is the name you are assigning to the method, and function_name is the name of the function.

You can then call the method in the context of the object as follows:

object.methodname(params);
You can define methods for an object type by including a method definition in the object constructor function. For example, you could define a function that would format and display the properties of the previously-defined car objects; for example,

function displayCar() {
   var result = "A Beautiful " + this.year + " " + this.make
      + " " + this.model
   pretty_print(result)
}
where pretty_print is the function (defined in "Functions") to display a horizontal rule and a string. Notice the use of this to refer to the object to which the method belongs.

You can make this function a method of car by adding the statement

this.displayCar = displayCar;
to the object definition. So, the full definition of car would now look like

function car(make, model, year, owner) {
   this.make = make
   this.model = model
   this.year = year
   this.owner = owner
   this.displayCar = displayCar
}
Then you can call the displayCar method for each of the objects as follows:

car1.displayCar()
car2.displayCar()

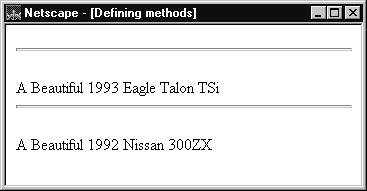

This produces the output shown in Figure 10.1

Figure 10.1    Displaying method output

Using this for Object References

JavaScript has a special keyword, this, that you can use within a method to refer to the current object. For example, suppose you have a function called validate that validates an object's value property, given the object and the high and low values:

function validate(obj, lowval, hival) {
   if ((obj.value < lowval) || (obj.value > hival))
      alert("Invalid Value!")
}
Then, you could call validate in each form element's onChange event handler, using this to pass it the form element, as in the following example:

<INPUT TYPE="text" NAME="age" SIZE=3
   onChange="validate(this, 18, 99)">
In general, this refers to the calling object in a method.

When combined with the form property, this can refer to the current object's parent form. In the following example, the form myForm contains a Text object and a button. When the user clicks the button, the value of the Text object is set to the form's name. The button's onClick event handler uses this.form to refer to the parent form, myForm.

<FORM NAME="myForm">
Form name:<INPUT TYPE="text" NAME="text1" VALUE="Beluga">
<P>
<INPUT NAME="button1" TYPE="button" VALUE="Show Form Name"
   onClick="this.form.text1.value=this.form.name">
</FORM>

Object Deletion

 In JavaScript for Navigator 2.0, you cannot remove objects--they exist until you leave the page containing the object. In JavaScript for Navigator 3.0, you can remove an object by setting its object reference to null (if that is the last reference to the object). JavaScript finalizes the object immediately, as part of the assignment expression.
