Equilibrium 7

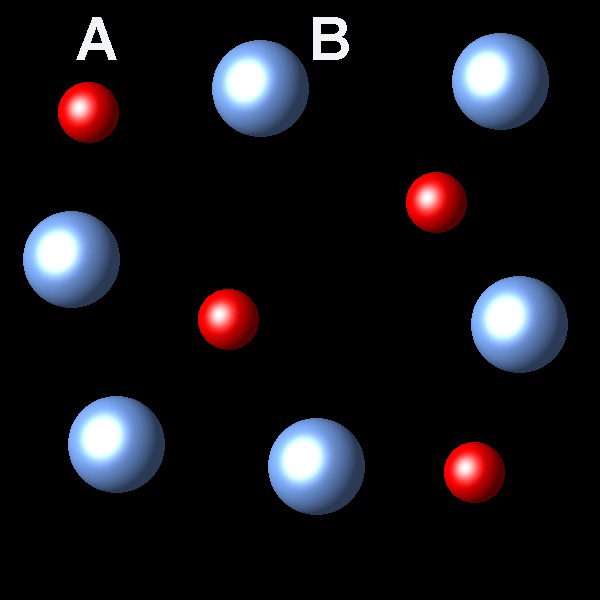

Process A(g) → B(g) is exothermic; ΔH<0. When this reaction is performed in a closed system reaches an equilibrium state A(g) ⇄ B(g). The following picture shows a representative sample of this system.
 |

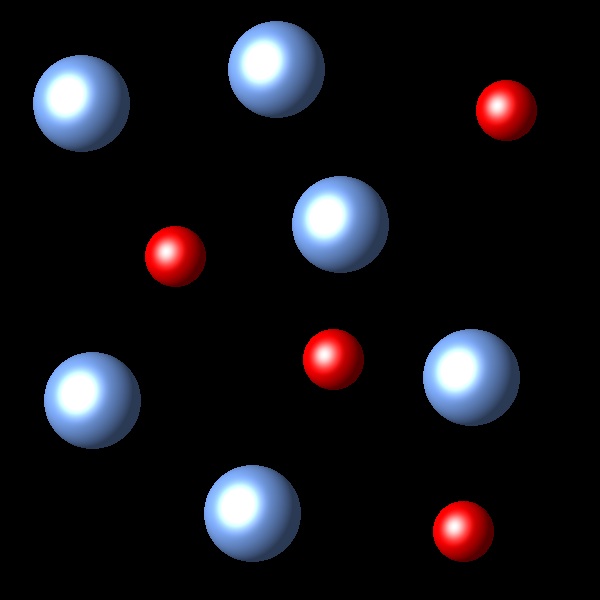

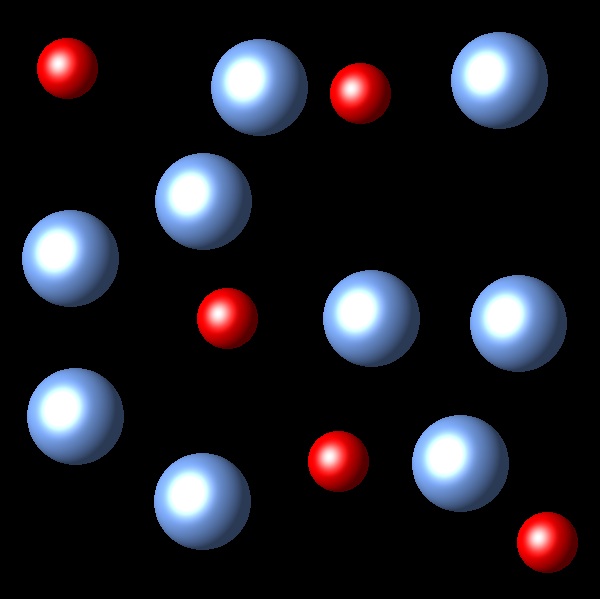

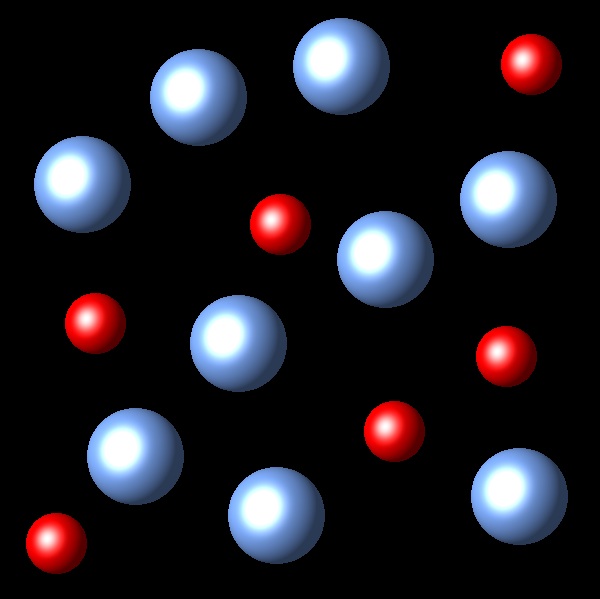

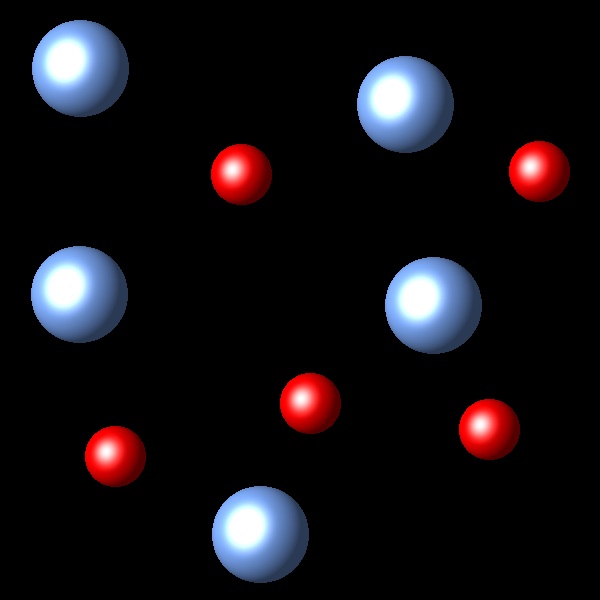

If B(g) is added to this system in equilibrium, keeping the volume constant, which of the following representations best describes the situation of the system when it reaches equilibrium again?
 |
 |
 |
 |
