Equilibrium 8

⇐ To index

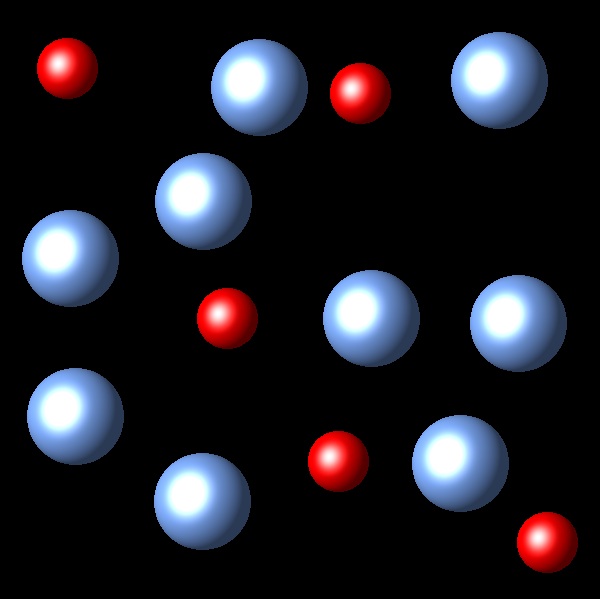

Process A(g) → B(g) is exothermic; ΔH<0. When this reaction is performed in a closed system reaches an equilibrium state A(g) ⇄ B(g). The following picture shows a representative sample of this system.

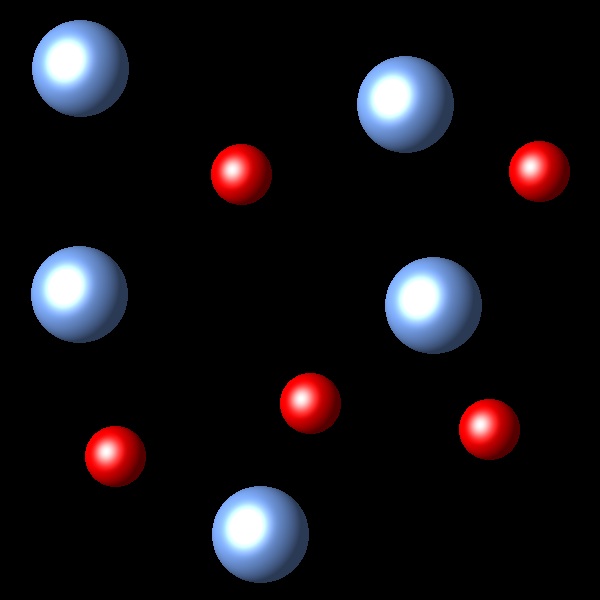

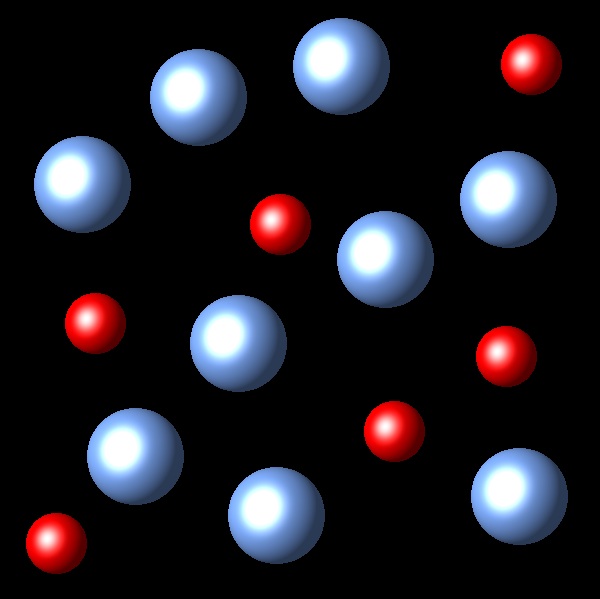

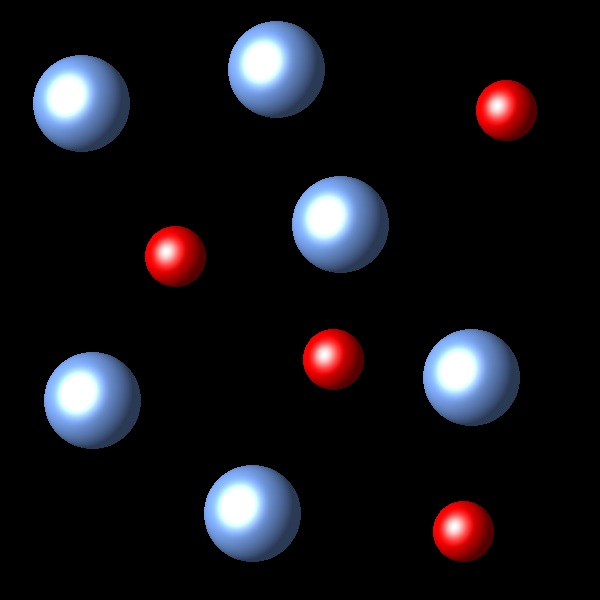

If the temperature of the system increases at constant pressure Which of the following representations best describes the situation of the system once reaches equilibrium again?

Volume changes are not shown in the figures.
