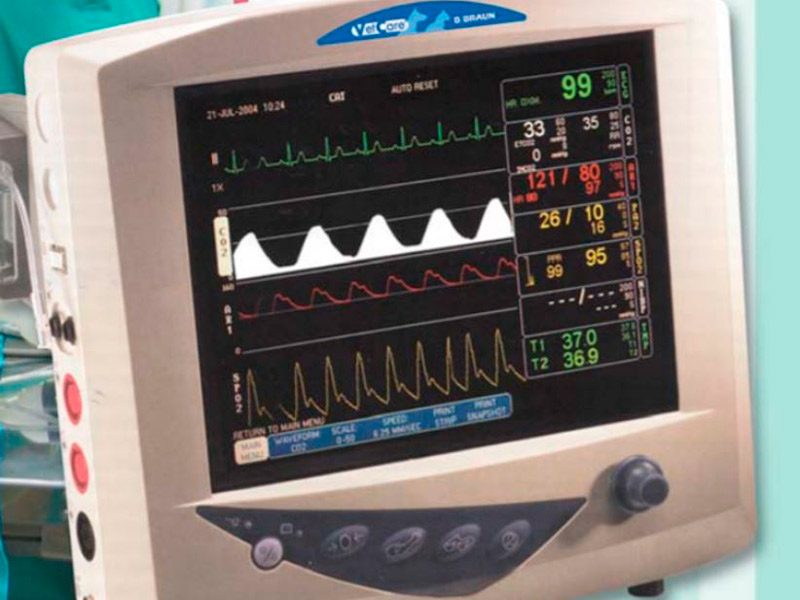

Equipment designed to monitor the patient's vital signs (ECG, pulse oximetry, capnography, invasive and non-invasive blood pressure, temperature).

Display indicators and keys:

• Main display:
  • 10.4-inch-high resolution active colour LCD.
  • Resolution 640 x 480 pixels.
• Indicators:
  • Green LED and mains connection icon.
  • Green LED and battery operation icon.
• Function keys:
  • On/Off, PI zero, start/stop PANI, start/stop the printer, alarm mute, rotary knob with push to select.

SpO2:

• Range 0-100% (functional saturation).
• Accuracy +/-2% between 70-100%, < 70% unspecified.
• High and low alarms 50-100% and off.
• Selectable average: slow (16 beats), normal (8 beats) or fast (4 beats).

Heart rate:

• Range:
  • 20-350 bpm (SpO2).
  • 20-350 bpm (PANI) - Cat/Dog.
  • 40-180 bpm (PANI) - Horse.
  • 20-350 bpm (ECG).
• Accuracy +/-2 bpm or +/-3% (whichever is greater).
• Alarms 20-350 bpm and off.
• Average Fixed at 8 seconds.

ECG:

• 3 or 5 electrode configuration.
• Electrodes I, II, III, aVR, aVL, aVF and V selection.
• Gain X0.5, X1, X2, X4.
• Defibrillator protection Yes.
• Sweep speed 6.25, 12.5, 25 or 50 mm/s.

Non Invasive Blood Pressure (NIBP):

• Range 20-250 mmHg (Cat/Dog/Horse).
• Accuracy is Equal to or better than specified in the SP10-1992 AAMI standard for PANI accuracy by oscillometric method.
• Inflation pressure 50-250 mmHg (Cat) 50-200 mmHg (Dog/Horse) Default inflation pressure 200 mmHg (Cat), 150 mmHg (Dog), 100 mmHg (Horse).
• Alarm range 20-250 mmHg and off.

Invasive Pressure 2 channels:

• Range -50 to 300 mmHg (after zeroing).
• Accuracy +/-1 mmHg or +/-1% (whichever is greater).
• Alarms -50 to 300 mmHg.

Temperature 2 channels:

• Range 0-50º C.
• Accuracy +/-0,1º C plus temperature sensor tolerance.
• Resolution 0,1º C.
• Alarms 20.0-50.0º C and off.
• YSI 400 Series sensor compatibility.

Sidestream Capnography:

• Measurement method non-dispersive IR absorption.
• Measurement range 0-10% CO2 STPD.
• Display range 0-100 mmHg; 0-13.3 kPa; 0-10% CO2.
• Accuracy +/-2 mmHg or 4% of reading (whichever is greater) (0-10% CO2).
• Alarms 0-100 mmHg; 0-13.3 kPa; 0-10% CO2 and off.
• N2O compensation Selectable 40% (off by default).
• Average 4 breaths.
• Flow 150 ml/min +/-20 m.
