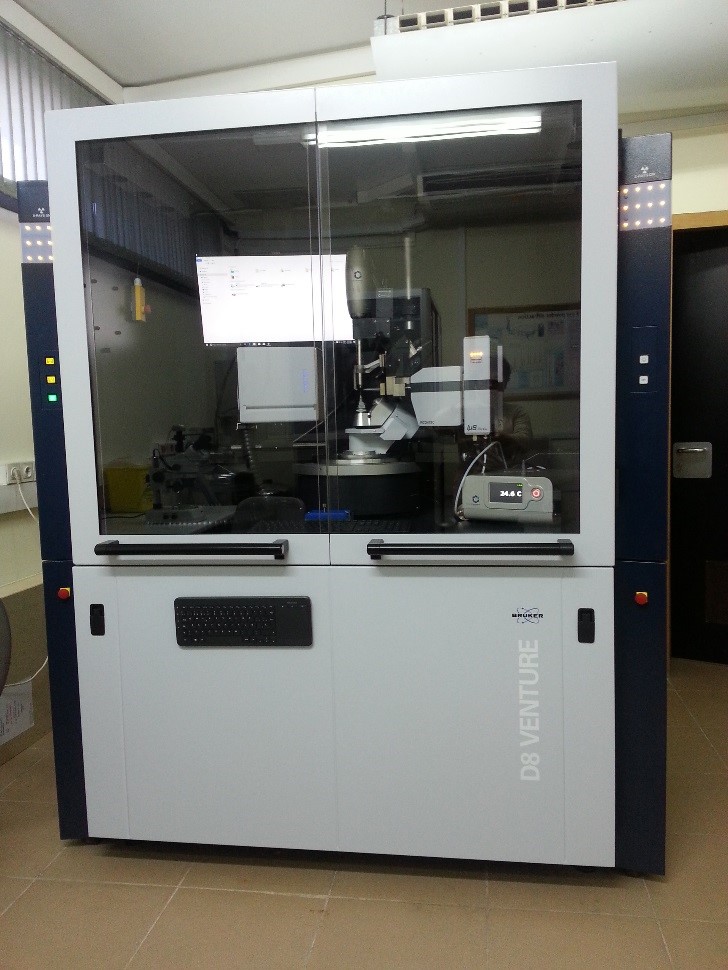

The D8 Venture Diffractometer is a 3-D single crystal structure determination system. The system covers all typical single crystal applications in organic and inorganic chemistry, solid-state and organo-metallic chemistry, as well as mineralogy and pharmacy. It can be configured for electron density investigations at room or low temperatures, phase transition investigations or high-pressure studies. It also allows all these studies to be carried out with two radiations; Mo or Cu. Obtained through two microsources and their associated optics. The PHOTON 100 detector with CMOS technology, cold light illumination and HD video-microscope.

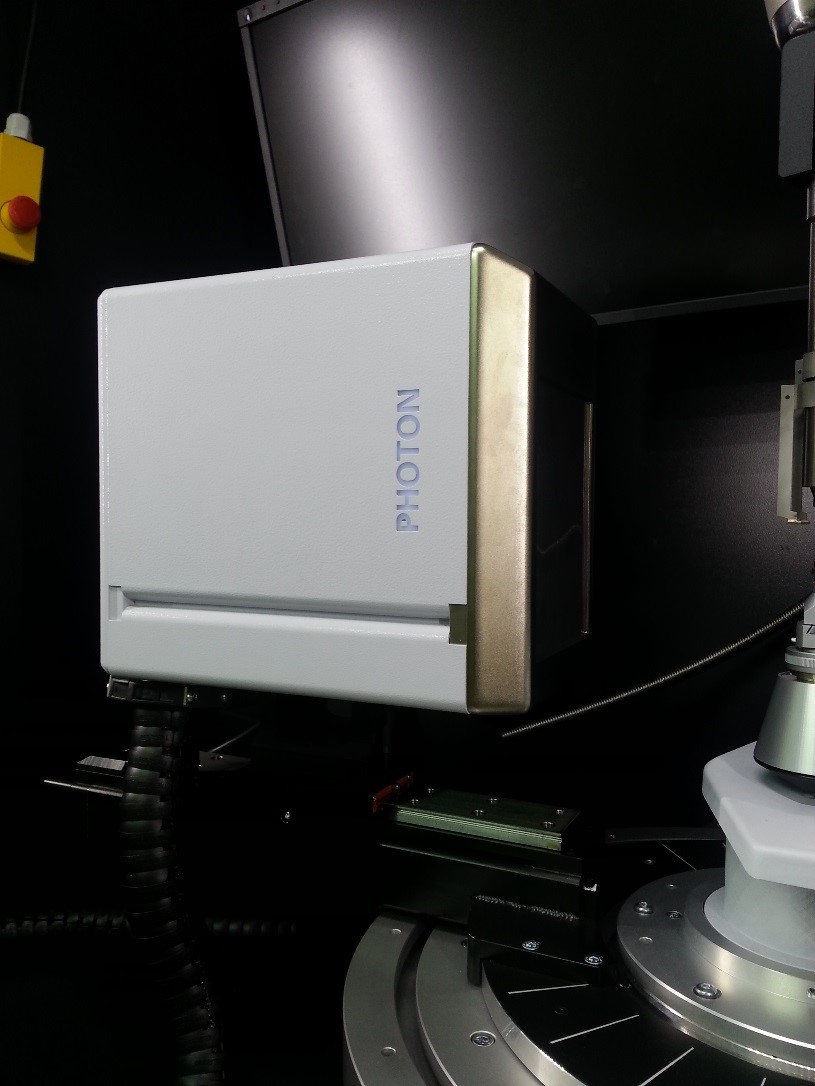

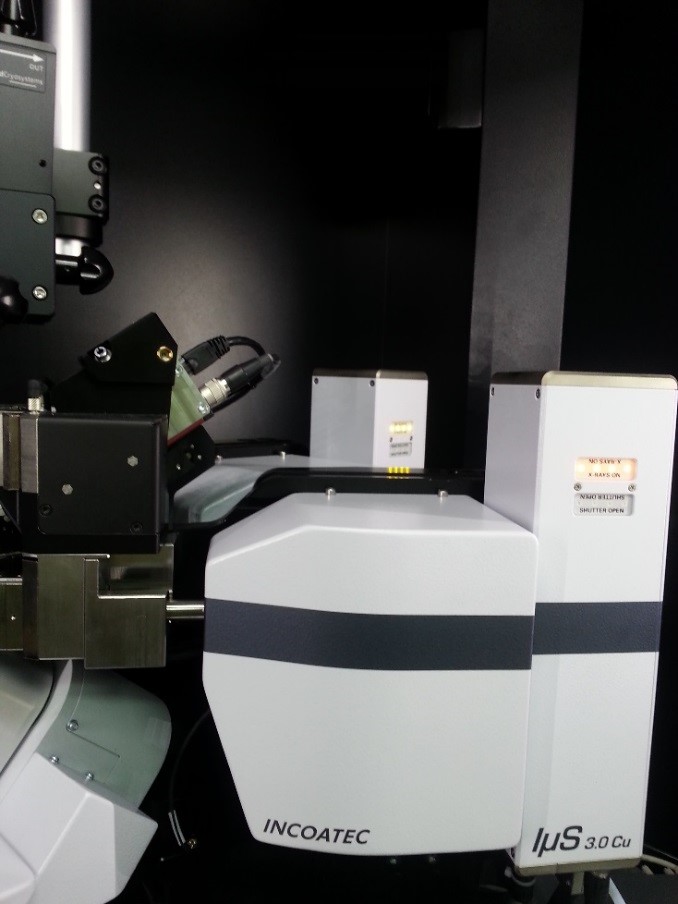

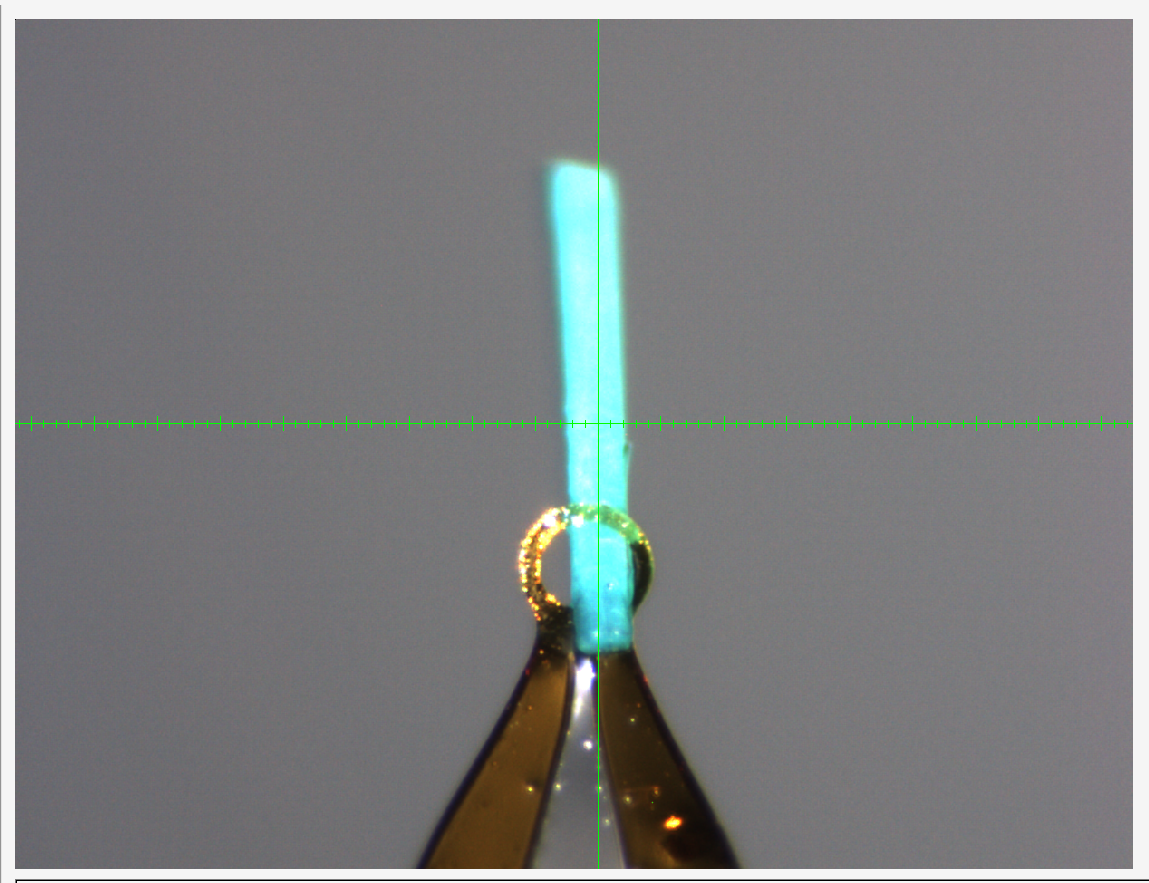

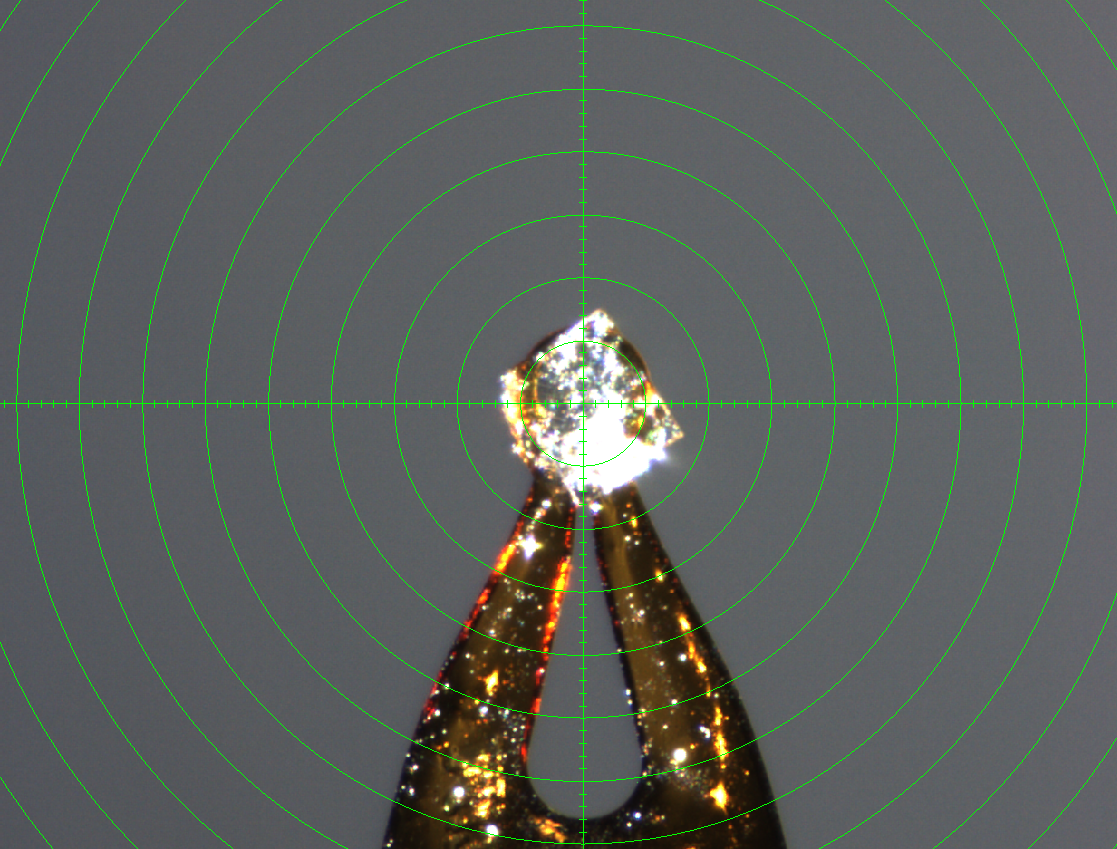

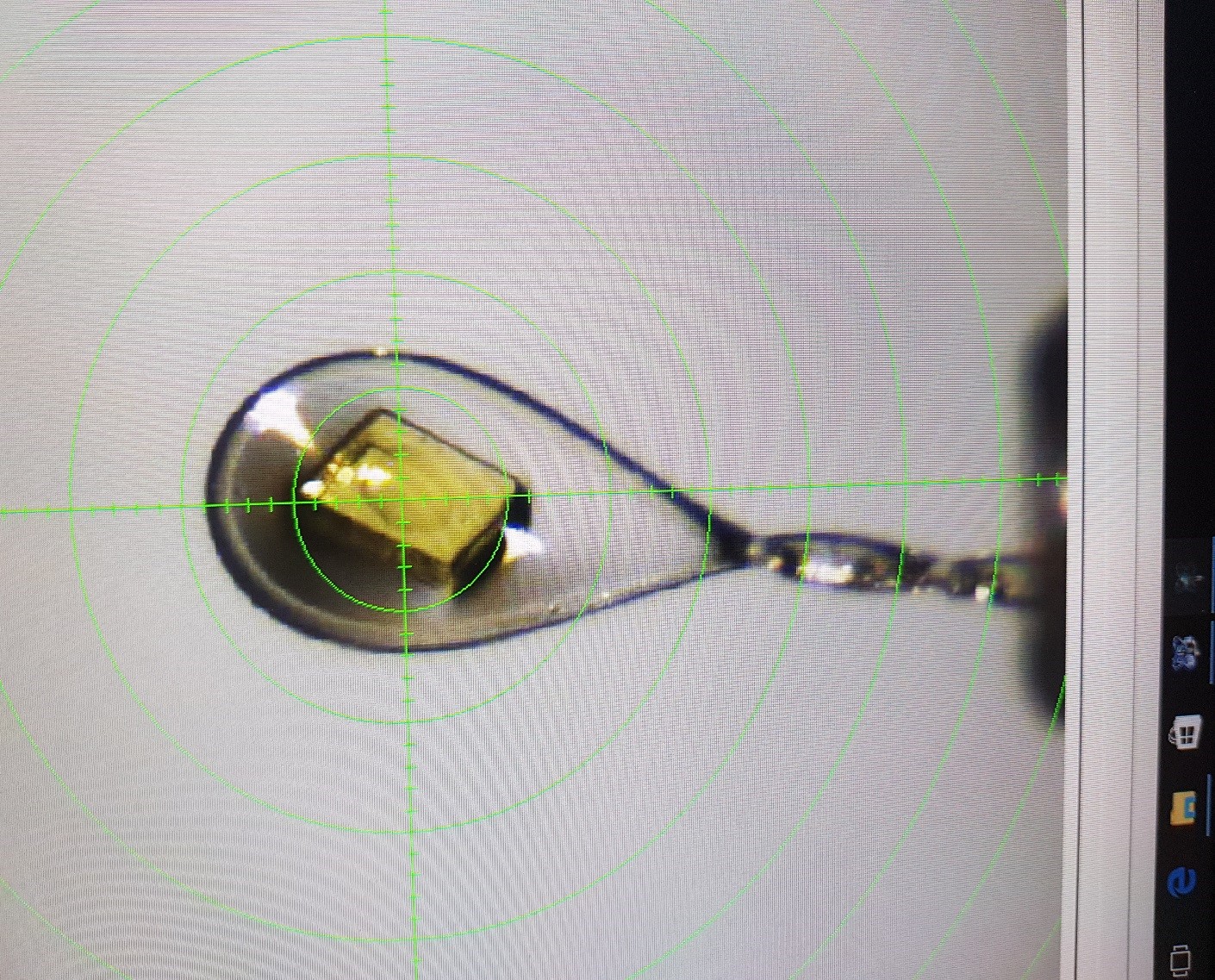

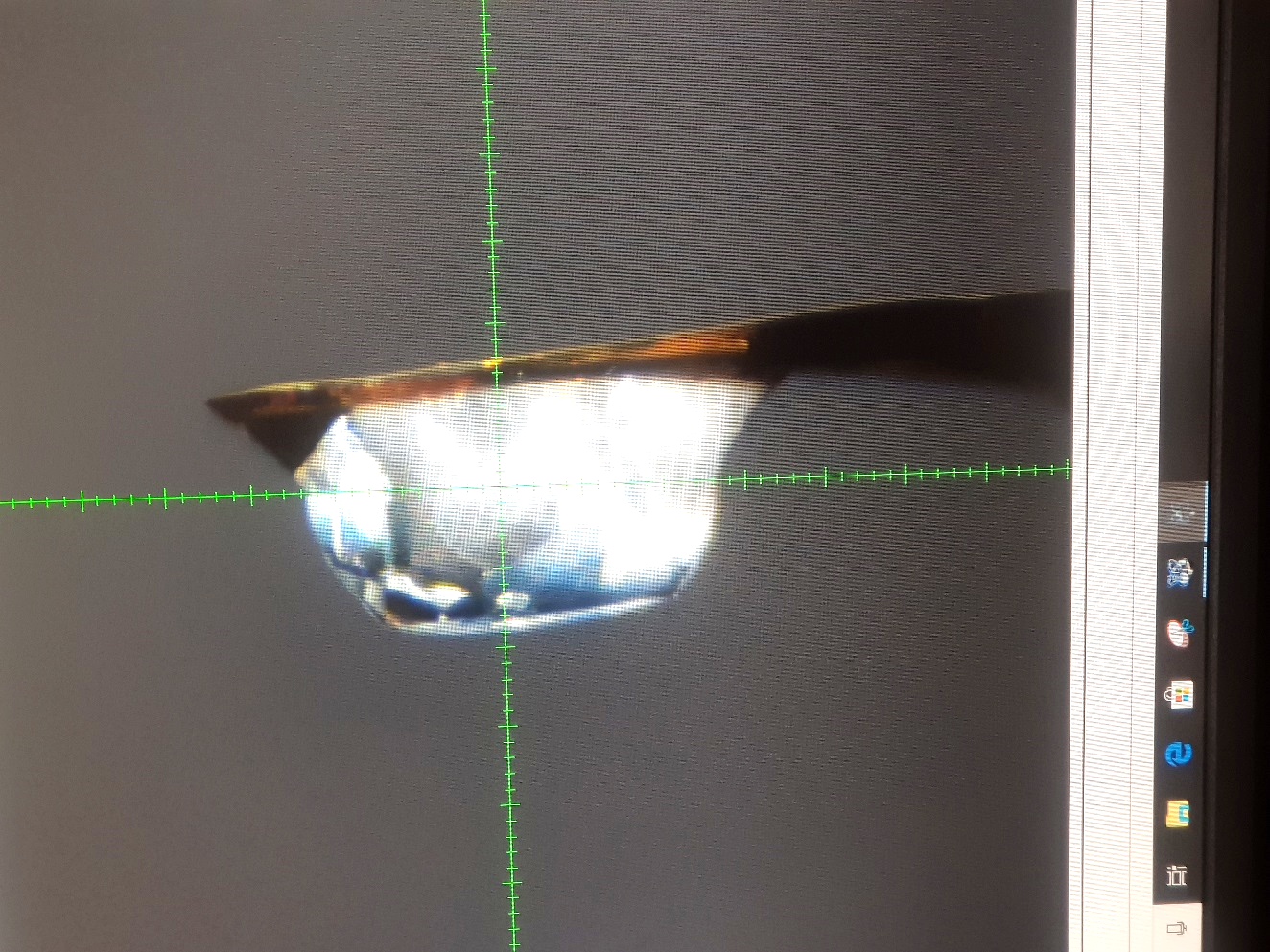

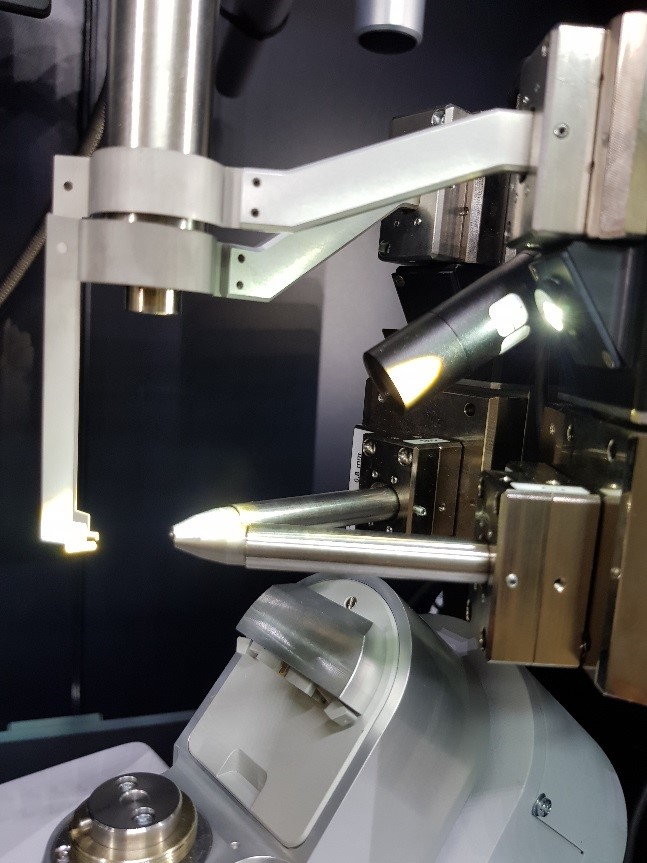

Four-circle goniometer with Kappa geometry. Mo and Cu microsources with their respective optical bems stoppers and collimators. PHOTON 100 detector with CMOS technology and active area of 140x100 mm. High definition colour video microscope. Cryosteam 800 low temperature system. High pressure cell. Software: Apex3.
This equipment covers all typical single-crystal applications in organic and inorganic chemistry, solid-state and organo-metallic chemistry, as well as mineralogy, agrochemistry and pharmacy. It can be configured for electron density investigations at room or low temperatures, phase transition investigations or high-pressure studies. It also allows all these studies to be carried out with two radiations, Mo or Cu.
ISO 9001:2015 certification
Analyses can be performed by SCSIE staff or by experienced and authorised users.
