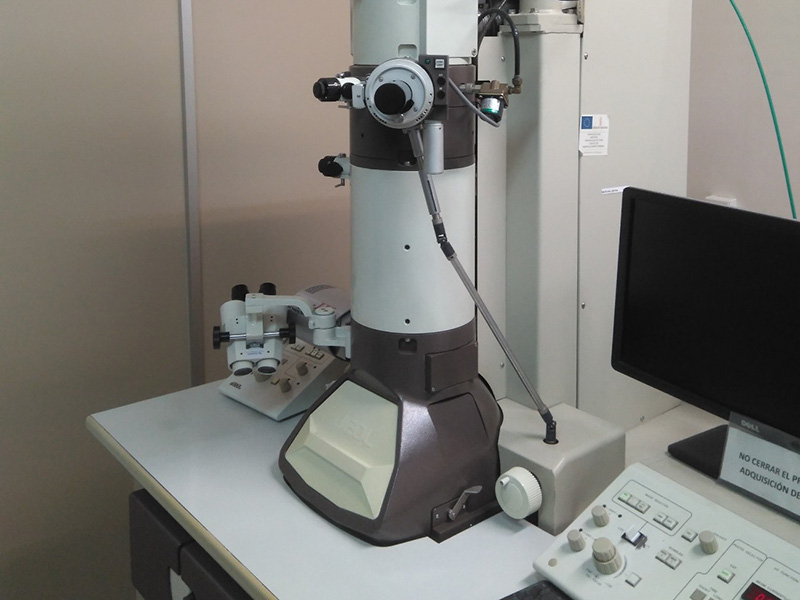

TEM JEOL jem 1010 100Kv
Brand: JEOL jem 1010
Type: Equipment
Type: Equipment
High contrast 100 Kv transmission electron microscope with 8 Mpx AMT digital camera.
Description
JEOL jem 1010 high contrast transmission electron microscope.
- Accelerating voltage from 40 to 100Kv.
- Magnifications in standard mode from 800 to 600.000x.
- Magnifications in LOW MAG mode from 50 to 1000x.
- Resolution of 0.4 nm.
- Polepiece EM-SAP10B.
- Tilt angle ±20º.
- Coefficient of spherical aberration (Cs) 3.4mm.
- Coefficient of chromatic aberration (Cc) 3.0 mm.
- Two-sample holder.
AMT XR80 digital camera with Mid-mount configuration ideal for all kinds of applications.
- 8 Mpx CCD sensor.
- Sensor pixel size 11 µm.
- Full-field speed and maximum resolution of 5 fps.
Practical implementation
- Histological studies at ultrastructural level.
- Morphological and structural characterisation of materials.
Quality certifications
ISO 9001:2015
Terms of use
UV structures that manages it
Central Service for Experimental Research (SCSIE)
