Versatile bedframe for the implementation of technologies of membrane in gas-liquid and gas-gas transference processes. It is doted with flow controllers, precision bombs and gas chromatograph. Furthermore, it has the ability of conforming flat membrane modules and hollow fibre membrane contactors.

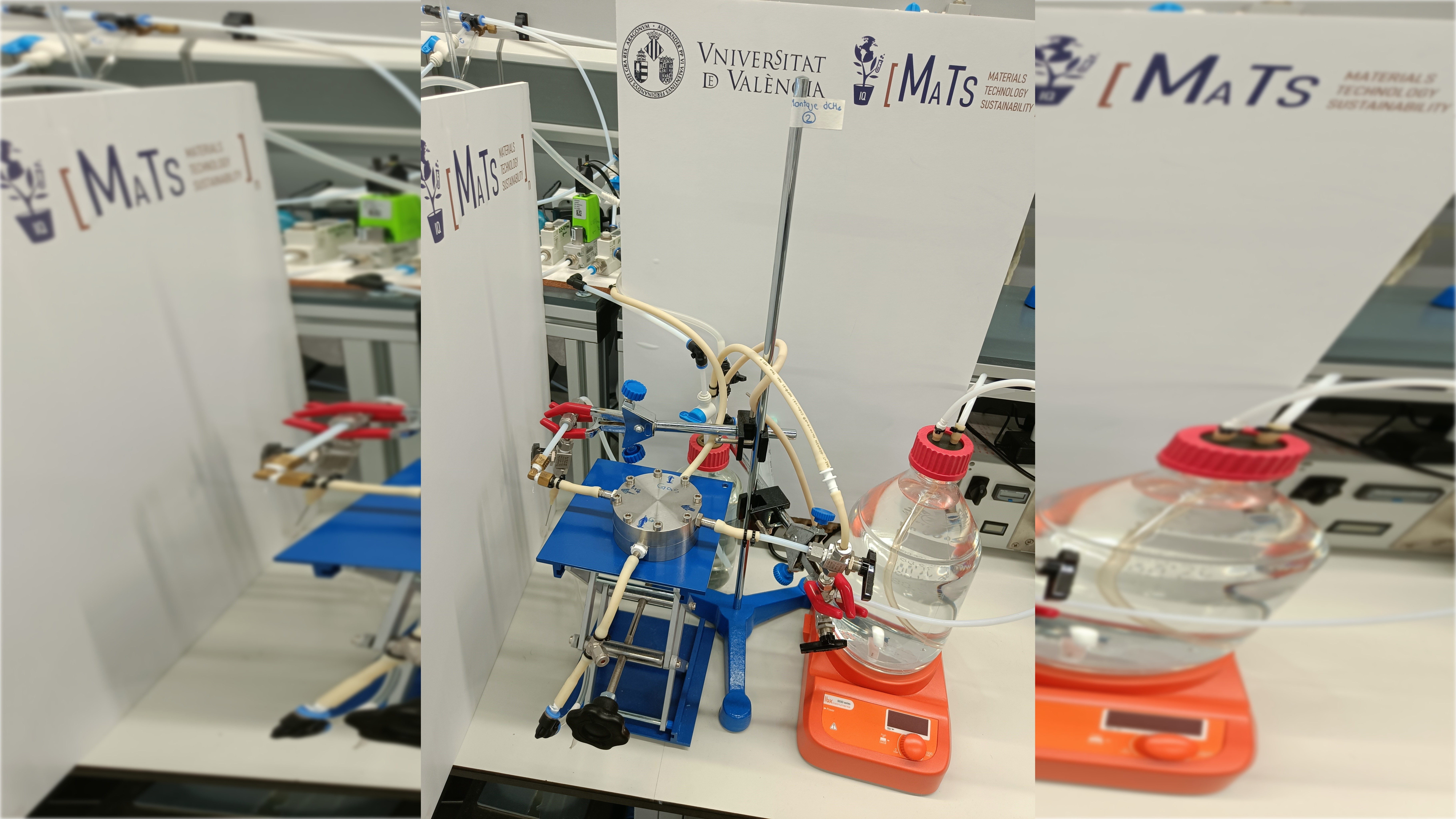

Handmade
Main features:
- Stainless steel flat membrane contractor module. Capacity for circular membranes of 6.5 cm in diameter.
- Gs-liquid absorbtion column.
- Pyrex tank with magnetic stirring for distill water storage with or without gases.
- Peristaltic pump with a capacity of 40,5 L h-1.
- Gas flow meter with capacities of 0,05 SLPM, 2 SLPM and 10 SLPM.
Applications:
- Determining the performance of flat membranes for the retoration of gases such as CH4 and CO2 dissolved in liquid currents in batch operations.
- Determining the resistance of membranes against hydraulic stress simulated conditions.

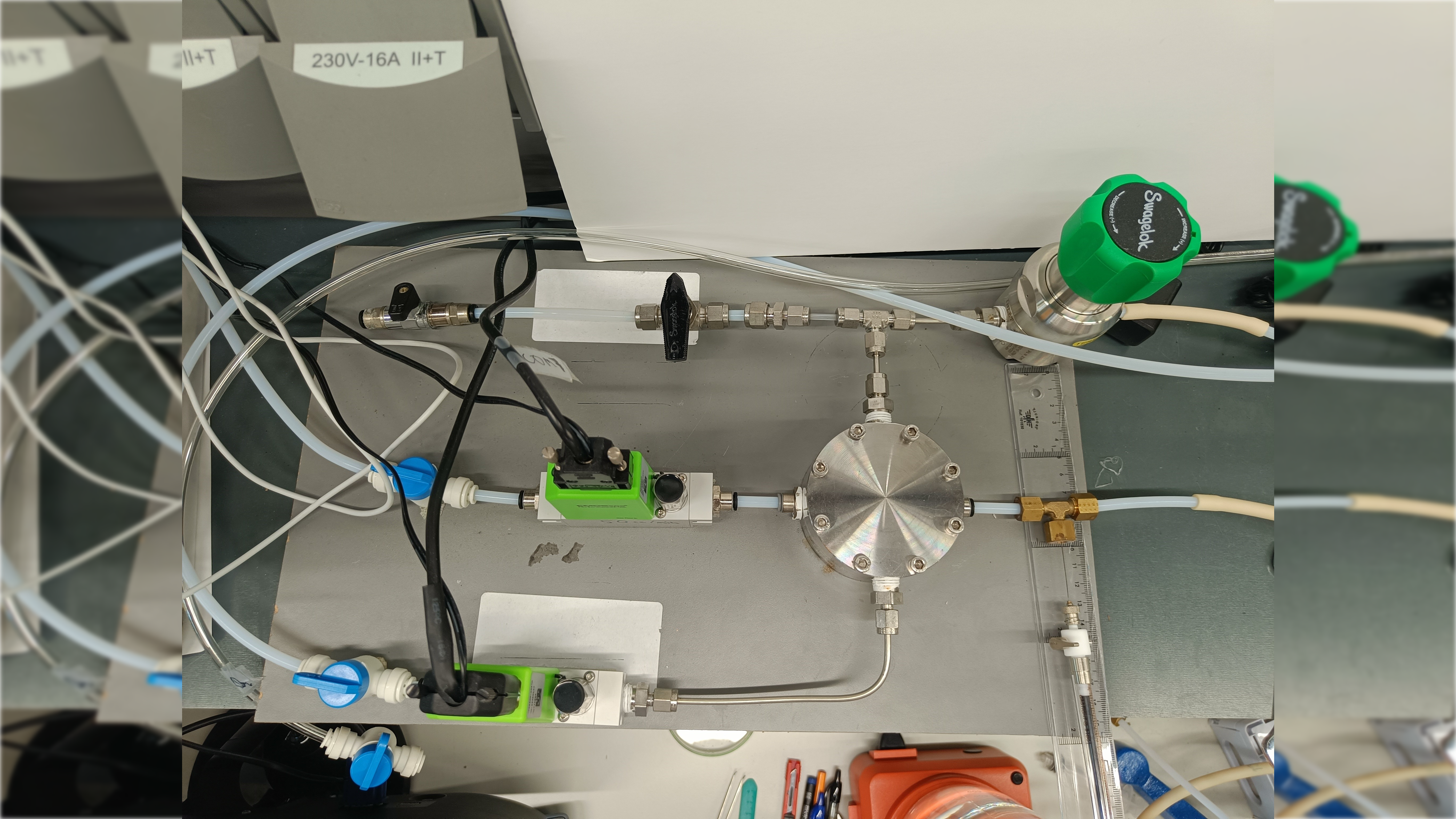

Handmade
Main features:
- Stainless steel flat membrane contrator with capacity for circular membranes of 6.5 cm diameter.
- Gas flow meter with capacities of 50 SCCM and 1 SLPM.
- Pressure regulation valve.
- Possibility to install a pressure meter.
- Work gases: N2, CH4, CO2.
Applications: Gas permeability test.

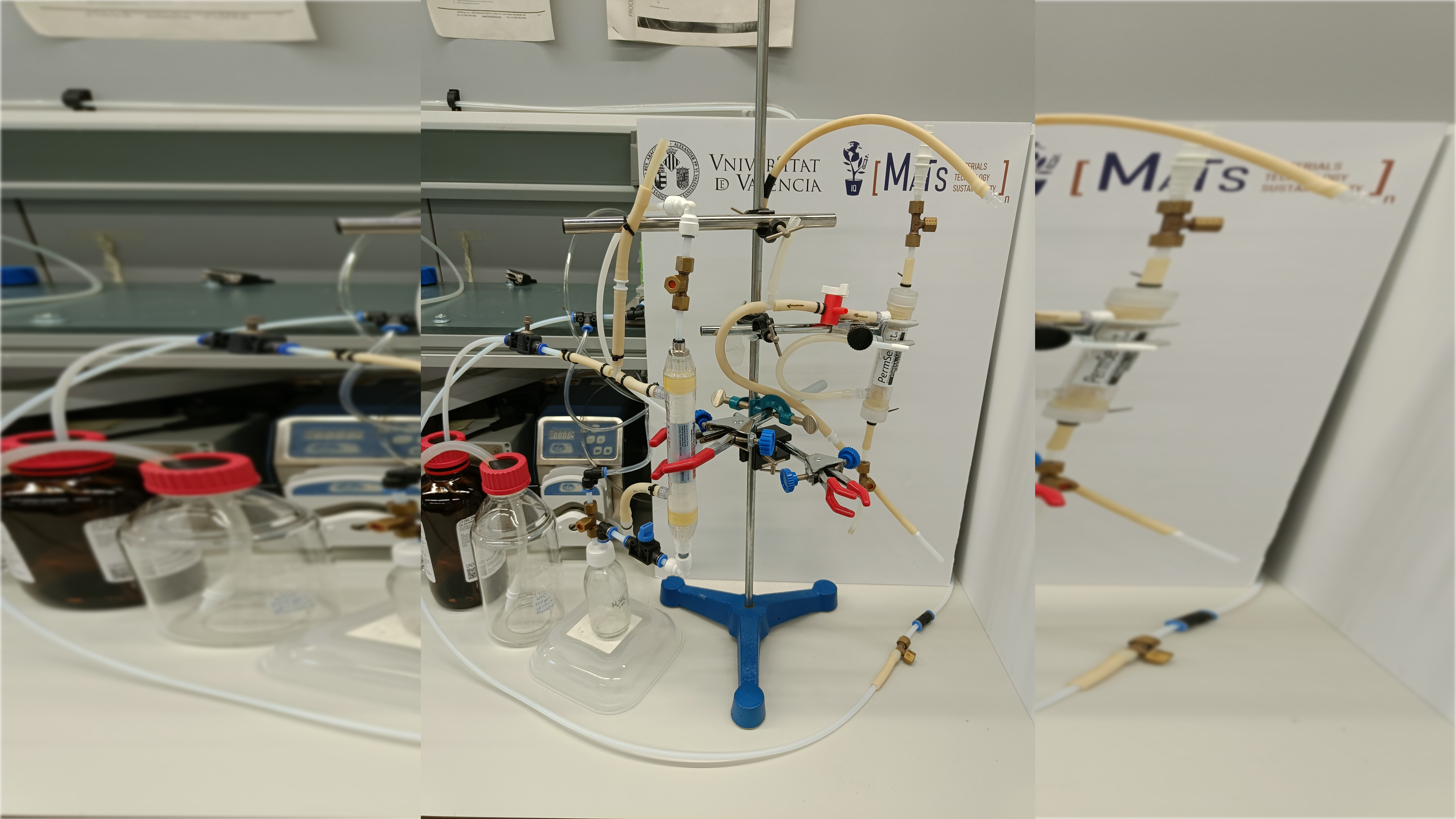

Handmade
Main features:
- Gas-liquid connections to hold laboratory scale empty fiber contractors.
- Peristaltic pump with capacity of 40,5 L h-1.
- Gas flow meters with capacities of 0,5 SLPM and 2 SLPM.
Applications: Biogas upgrading
