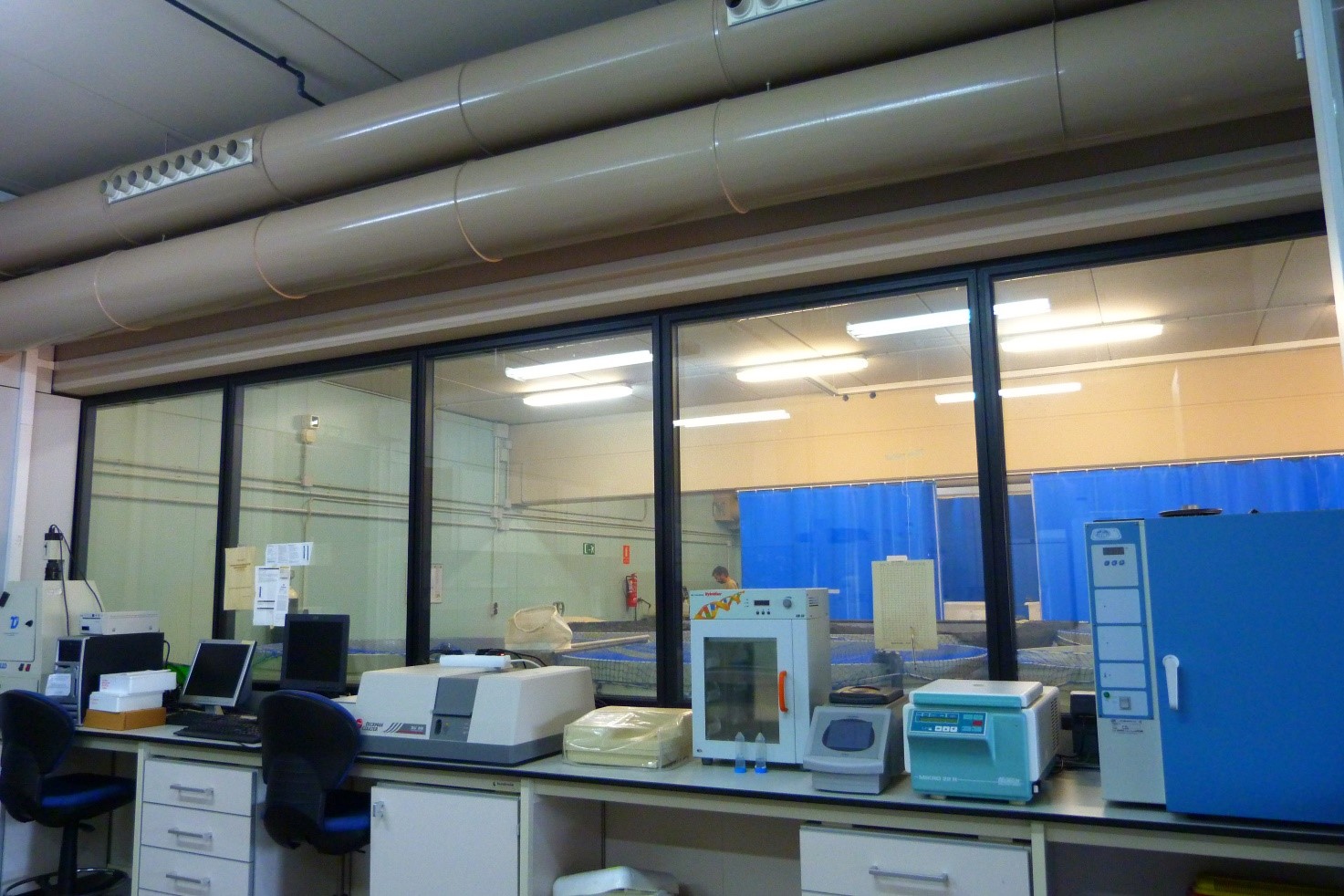

Equipment of the Experimental Aquarium Plant Laboratory.
The sample laboratory of the Experimental Aquarium Plant includes a series of resources that allow to go through crucial stages in the processing of samples related to aquatic biota researches or any type of sample for its future study.
|
Equipment |
Brand and model |
Inventory code |
Description |
|

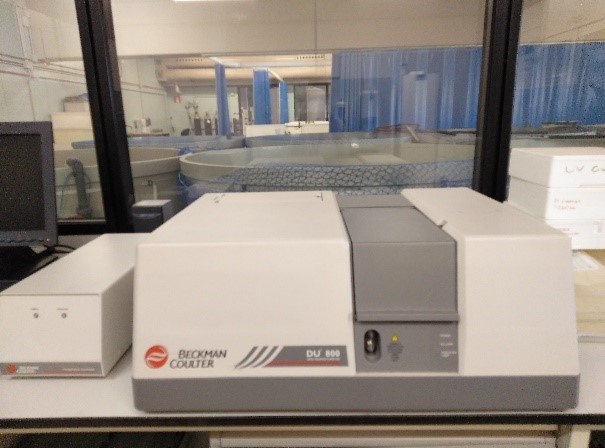

Perkin Elmer Spectrophotometer |
Beckman Coulter España S.A./ DU-800 |
72-112621 |
Absorption determination in UV-visible range. Range from 190 to 1100nm. Cuvette size of 10mm sideways |
|

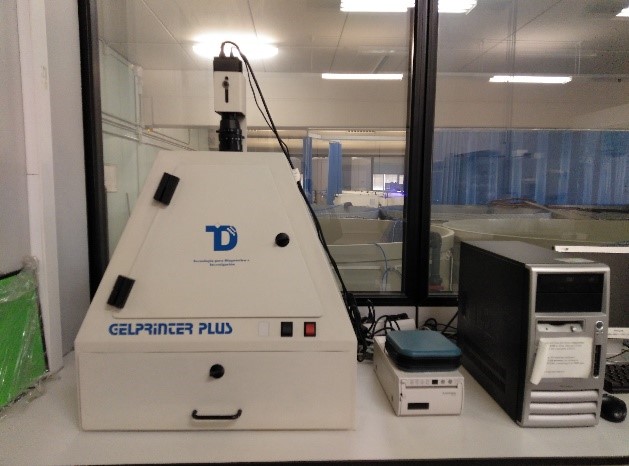

Gel electrophresis reader |
Mitsubishi / P91DW (UB) |
72-111109 |
Prints from gel reader. Point resolution of 1024 x 1024, 256 level gradation. 14 second printing speed |
|

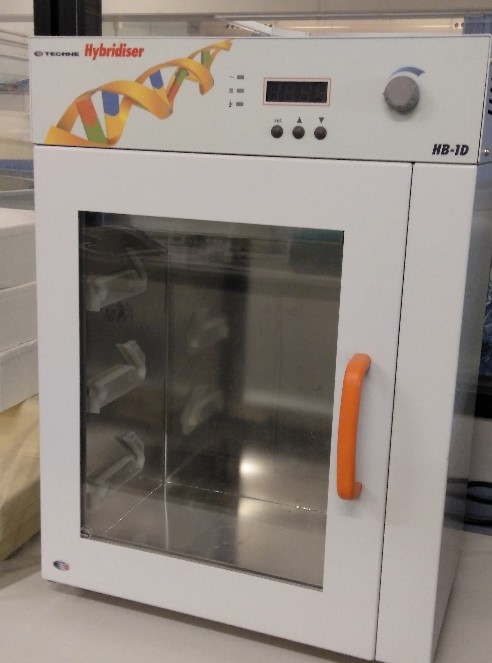

Hybridisation oven |
Techne / HB-1D |
72-111344 |
Temperature range of 10-80ºC. Tube rotation from 5 to 20 rpm. Maximum Nº of hybridisation tubes: 4 big and 16 small. |
|

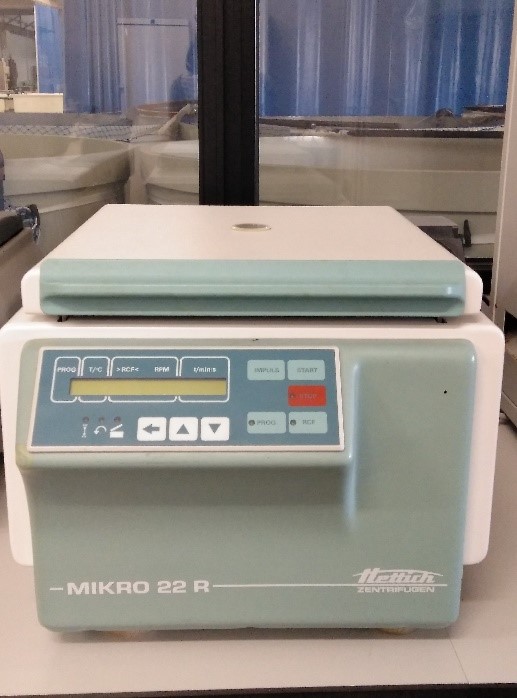

Centrifuge |
Heittich / Mikro 22R |
72-106041 |
Vmáx 18000 (24 eppendorf rotor). Time from 0 to 97% (24 s). Time from 100 to 0% (28 s). Tº 2ºC |
|

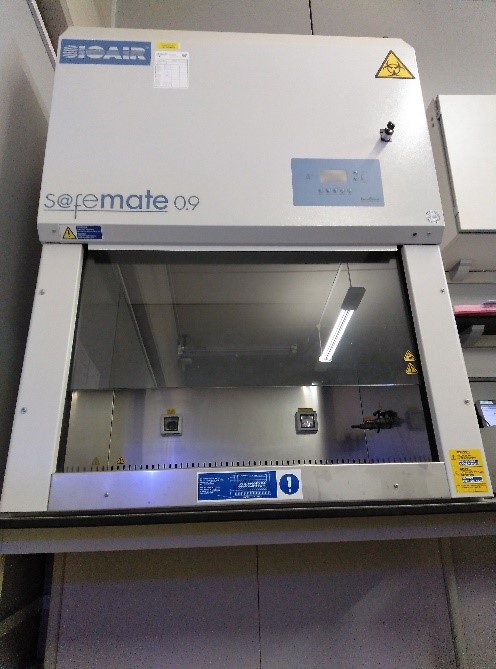

Biological safety cabinet |
Bioair / Safemate 0.9 |
72-191030 |
Medium front air speed 0.40 m/s. Expelled air volume ~ 350 |
|

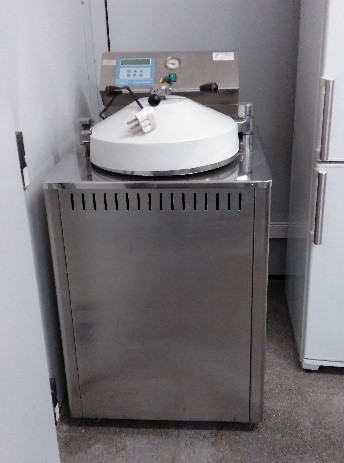

Vertical autoclave |
Raypa / Stericlav – S-75 |
72-110142 |
Sterilisation of materials and liquid reagents. Sterilisation Tº from 105 to 139ºC. Maximum power of 2.5 bar. Sterilisation time from 3 to 120 min. |
Sample processing
ISO Certificate 9001:2015
Restricted access to people authorised by the Plant's technicians. Entrance allowed with a personal and non-transferable card. Work with the appropriate personal protective equipment.
The compliance with the operative procedure defined by the section's technicians is a requirement.
There’s no offered service for sample analysis, it’s only possible for users to rent the space and use its corresponding equipment.
