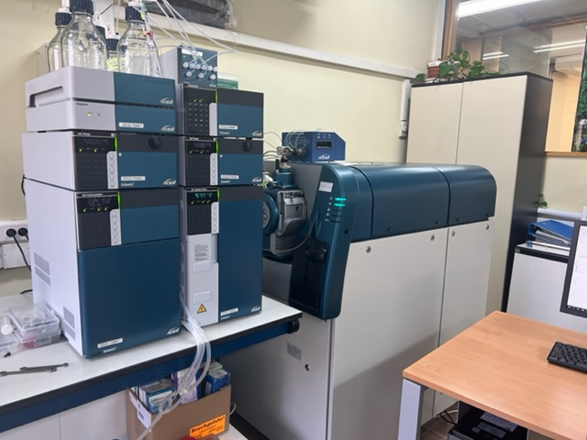

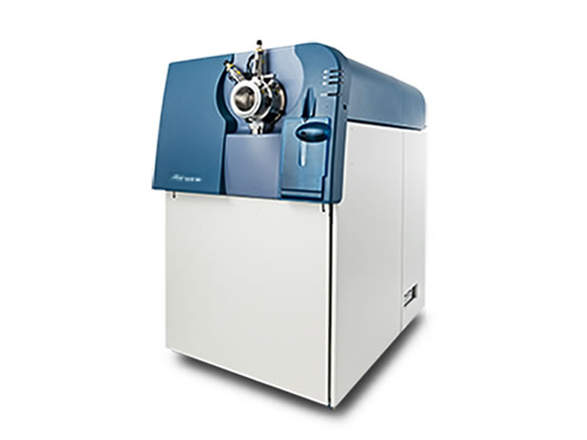

High resolution hybrid mass spectrometer and quadrupole time-of-flight analyser TRIPLETOF 6600+ and UHPLC (QTOF6600+).

QTOF 6600

• High sensitivity (MS and MS/MS)
• Acquisition speed of 100 Hz; High acquisition speed without compromising resolution of data to identify more compounds in the same sample
• High resolution (≥35000 (FWHM) at 956 m/z
• Mass accuracy (~ 1 ppm RMS)
• Linear dynamic range (~4 orders RMS)
• Hybrid triple quadrupole time-of-flight system. Specifications typical of fast, high resolution and sensitive equipment, without compromising any of the characteristics. High versatility in identification and quantification.
• The system is composed by the following parts:
  • ionisation source: ESI/APCI
  • Interface between the ionisation source and analysers
  • quadrupole analysers
  • packing system and exclusive ion acceleration
• TOF: High capacity, resolution and speed time-of-flight analyser
• Detector: Wide range dynamic multi-canal TDC

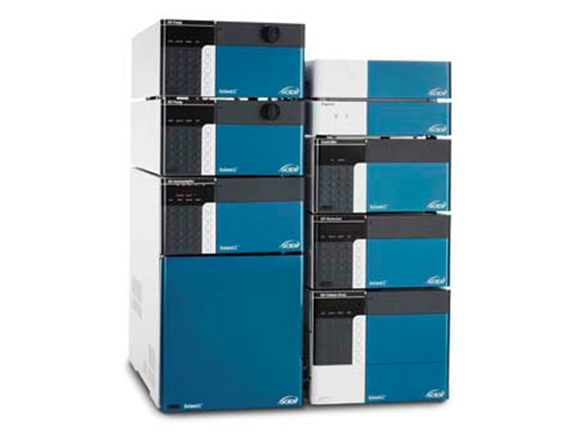

• Liquid chromatography system Exion LC AD
  • Constant flow and pressure (10-1300 bar)
  • High pressure gradient
  • Pressure measurement accuracy. Better than ±2% or 10 bar
  • Built-in sample refrigeration system between 4ºC and 40ºC.
  • Volume injection precision. RSD ≤ 0.25% ;
  • Volume injection precision. ±1%
  • Cross-contamination. Maximum of 0.0015%
  • Vacuum speed. From 0.1 to 5 μL /s (in increments of 0.1 μL /s)
  • Highest performance pressure, up to 1300 bar
  • Thermostat column oven from 4ºC to 150ºC

UHPLC

Key features of the mass spectrometer:

• Exion LC™ AD High pressure pump:
  • Constant flow and pressure and high pressure gradient
  • Dual piston micro-volume pumps
  • High pressure gradient system
• Exion LC degasser
• High pressure automatic sampler
  • Direct injection method of variable volume. Without sample loss during injection.
  • Built-in sample refrigeration system between 4ºC and 40ºC.
  • Injection volume. From 0.1 to 50 μL. 0.1 to 0.9 μL in increments of 0.1 μL, 1 a
  • Sample capacity: 96 y 384 μL vials and plates
  • Volume injection precision. RSD ≤ 0.25%
  • Volume injection precision. ±1%
• Column oven
• Temperature control from 4ºC to 150º above room temperature
• Solvent tray
