Barraca Entrada Casa La Raso 22 (Pinedo)

Barraca Entrada Casa La Raso 22
Barraca Entrada Casa La Raso 22
Province: València.
County: L'Horta Sud.
Town: València.
Poblat: Pinedo.
Location and access:

It can be reached from Carrer del Riu, in Pinedo, entering from Travessia de Pinedo a la Mar street. It is the second street on the right towards the sea.

Latitude and longitude: 39º 25’ 13.0”N 0º 20’ 14.4” O / 39.420268 -0.337332 / ETRS89 zona 30N 729211 4366799
Type of material good: Barraca.
State: Good.
Type of use: In use.
Ownership: Private.
Protection: Real estate of patrimonial relevance, Property of local relevance.
Chronology

Second half of the 19th century.

History

According to F. J. García Esparza (2012), this barraca (hut) would be 150 years old, therefore from the mid-19th century. But, in reality, as in the case of many of these popular buildings in l’Horta (the irrigated land of València), it is not easy to give a more concrete chronology. As in the whole of the periphery of the city of València, many of these huts were built during the 19th or early 20th century, even with possible important modifications on the same plot. These barraques (huts) do not usually appear in the documents of past centuries in an identifiable form by names or place names, while at an oral level they were usually known in their surroundings by the name or nickname of the people who owned or lived there. For this reason, the name of the barraca was frequently modified due to the change of residence of these people, and it is difficult to determine the specific history of the owners, works, etc., without family witnesses or neighbours. As for its name, it is the name of its street.

Description

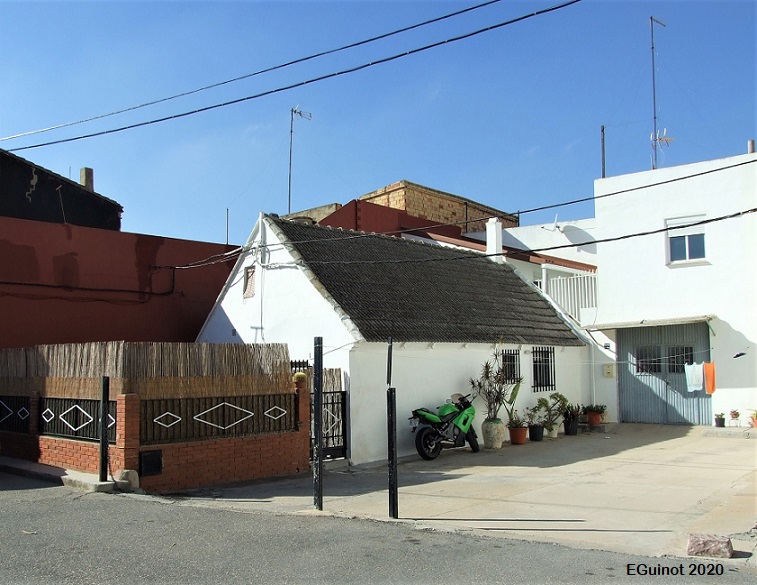

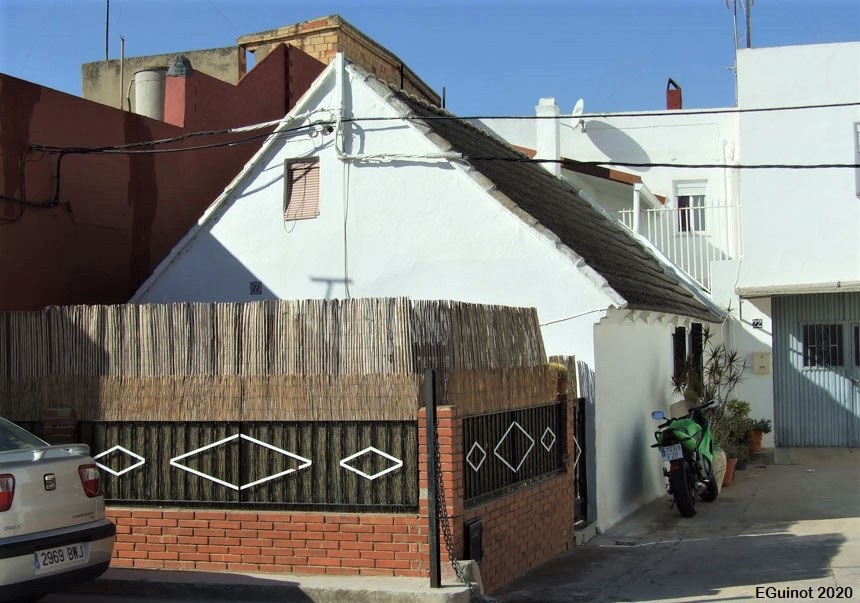

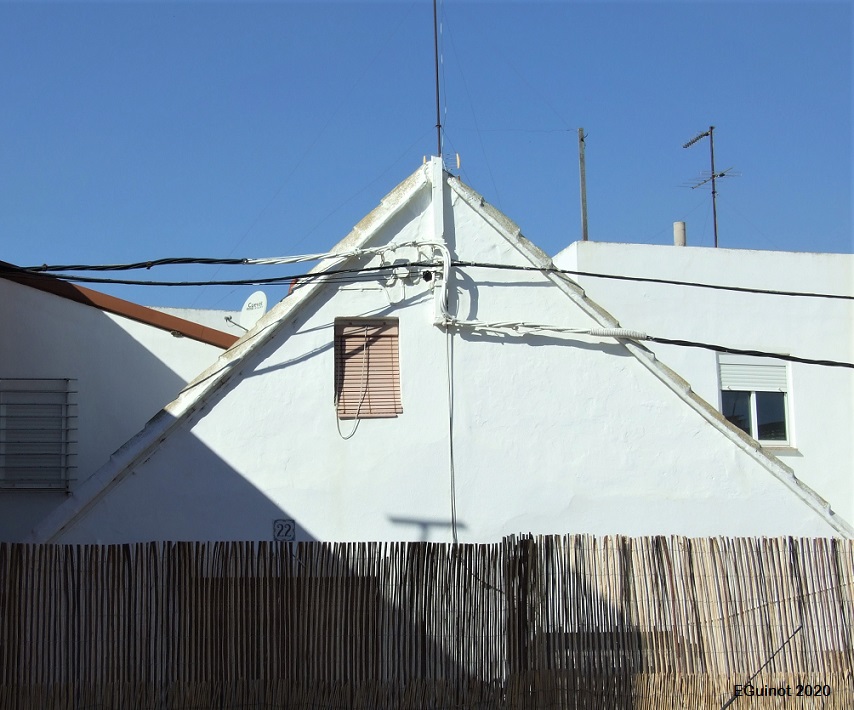

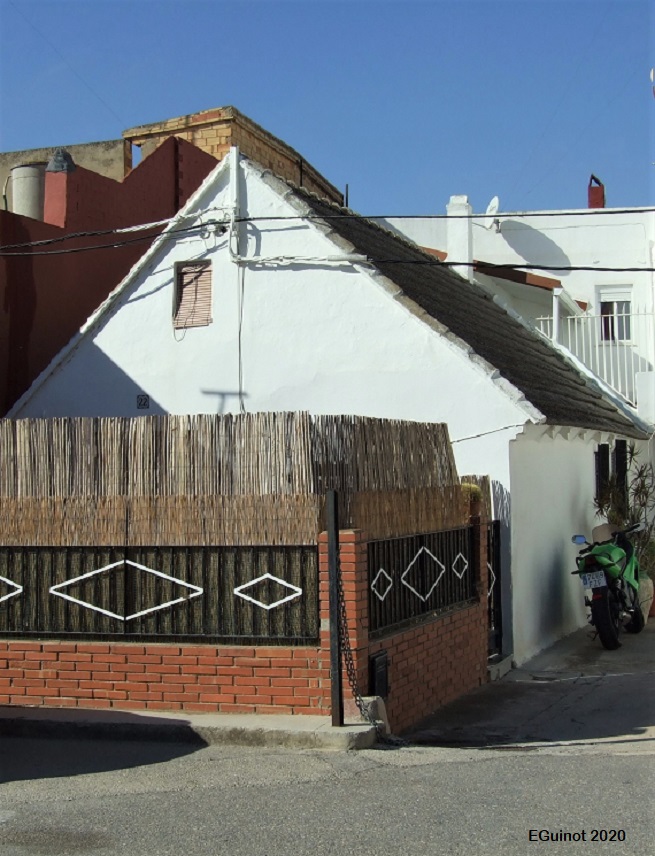

This barraca (hut), formerly located in a completely irrigated area and very close to the beach of Arbre de Gos, is now in a totally urbanised environment. However, it is true that it is still not clearly aligned with the surrounding houses and that there is still some cultivated land in front of it. Today, the barraca forms part of a residential complex with a house behind it. According to J. A. García Esparza (2012), its walls are made of adobe and bricks, the gables are also made of tile, and it is plastered on the outside and painted white. The doors and windows are partly in their traditional position, although some have been opened and the grilles are modern. The upper structure is made of wood and plaited cane, as was the tradition in the past, although the roof is now made of flat, curved tiles. It is rectangular in plan, with a floor area of 46.85 m2 (504.2 ft2), a façade 5.48 m (17ft 11.7in) wide and a depth of 8.55 m (28ft 0.6in) in length. It is 4.90 m (16ft 0.9in) high. It is equipped with electricity and water, in good condition for habitation, although several cables and the electricity meter box are attached to the façade.

Other Data

Ha quedat en zona urbana i fins ara no està inclosa en els catàlegs de patrimoni.

Publications

GARCÍA ESPARZA, J. A.(2012): Barracas del litoral mediterráneo. Catálogo de Valencia y su entorno, Castelló, Publicacions de la Universitat Jaume I, pp. 168-169.

DEL REY, M. (2010): Arquitectura Rural Valenciana, Barcelona: Galerada (1ª edició: València: Direcció General de Patrimoni Artístic, 1996).

GÓMEZ MATAIX, G. (2016): “De la esfera simbólica al catálogo arquitectónico: Atlas visual de la barraca de la Huerta de Valencia”, Revista Valenciana d’Etnologia, n. 8, pp. 115-152.

GARCÍA ESPARZA, J. A. (2008): “La barraca valenciana, procesos de transformación”, Revista Valenciana d’Etnologia, n. 3, pp. 145-159.

CRUZ OROZCO, J. (2003): “Las viviendas de cubierta vegetal en el territorio valenciano: el caso de la barraca”, Revista El Pajar: Cuaderno de Etnografía Canaria, n. 14, pp. 111-116.

SANCHIS GUARNER, M. (1957): Les barraques valencianes, Barcelona, Ed. Barcino (reedició: València, Institució Alfons el Magnànim, 1999).

ALMELA VIVES, F. (1960): La vivienda rural valenciana, Valencia, La Semana Gráfica.

CASAS TORRES, J. M. (1944): La vivienda y los núcleos rurales de la huerta de Valencia, València, Diputació Provincial de València.

RUIZ RUBIO, J. V. (1999): Construint una barraca valenciana, València, Ajuntament d’Alboraia-Col·legi d’Aparelladors i Arquitectes Tècnics de València-Col·legi d’Arquitectes de la Comunitat Valenciana.

GOSÁLVEZ, V.(1915): Estudio constructivo de la Barraca de la Vega Valenciana, Tema de investigación presentado al tribunal de oposiciones. Manuscrito. Biblioteca del COAV. València (Facsimil de: “La Barraca Valenciana”, COACV-Colegio Oficial de Arquitectos de la Comunidad Valenciana, 1998).

Location and Environment
Photo Gallery

Photos: E. Guinot
