Type: Equipment

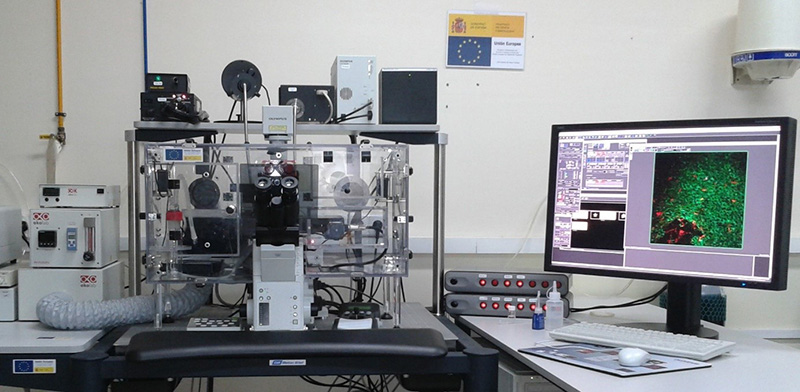

Confocal microscope mounted on a motorised inverted IX81 which includes the following lenses: 10x, 20x, 40x (oil), 60x (oil), 60x (water). This equipment’s excitation lines are: 405nm, 488nm, 515nm, 559nm, 594nm y 635nm. Moreover, the equipment has an incubation system, which makes it the appropriate equipment for live-cell work.
Confocal laser scanning system mounted on a fully motorised IX81 inverted microscope. This equipment’s excitation lines are: 405nm, 488nm, 515nm, 559nm, 595nm y 635nm.
Available lenses:
| medium | NA | WD(mm) | |
| UPLSAPO 10X 2 | dry | 0.40 | 3.10 |
| UPLSAPO 20X | dry | 0.75 | 0.6 |
| UPLFLN 40X O | oil | 1.30 | 0.2 |
| UPLSAPO 60X O | oil | 1.35 | 0.15 |
| UPLSAPO 60X W | water | 1.20 | 0.28 |
The detection system is composed of four PMTs, three dedicated to fluorescence and one to light-field image acquisition by scanning. It also has a spectral detection system that allows to adjust the range of wavelengths reaching the detector, as well as to make a series of images detected at different wavelengths (λ scan).
Additionally, the equipment includes an OKOLAB incubation system enabling the realisation of studies with live cells in a CO2 atmosphere controlled at 5% and 37 ºC.
- Studies for Colocalisation of Fluorescent Probes.
- Three-dimensional characterisation of biological structures and materials.
- Live cell studies.
ISO 9001:2015
