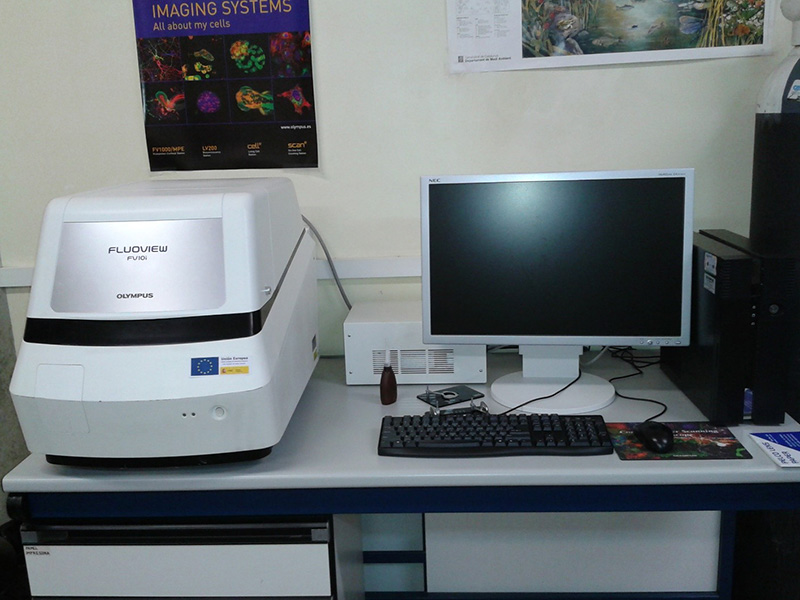

FV10W confocal laser microscope
Brand: Olympus Fluoview FV10i W
Type: Equipment
Type: Equipment
Fully motorised standard confocal equipment allowing for programmed acquisitions on several predefined areas. It has a dry 10x (NA 0,4) lens and a 60x (NA 1,2) water immersion one. The excitation lines are: 405nm, 473nm, 559nm y 635nm. This equipment is suited for live-cell experiments as it includes an incubator with temperature control.
Description
Fully motorised standard confocal laser scanning system. The excitations lines of this equipment are: 405nm, 473nm, 559nm y 635nm. It has two channels (PMT) for fluorescence detection and one for transmitted.
Available lenses:
| medium | NA | WD(mm) | |
| UPLSAPO 10V 2 | dry | 0.40 | 3.10 |
| UPLSAPO 60X W | water | 1.20 | 0.28 |
Practical implementation
- Studies for Colocalisation of Fluorescent Probes.
- Three-dimensional characterisation of biological structures and materials.
- Live cell studies.
Quality certifications
ISO 9001:2015
Terms of use
UV structures that manages it
Central Service for Experimental Research (SCSIE)
