TEM HITACHI HT7800 120Kv
Brand: HITACHI HT7800
Type: Equipment
Type: Equipment

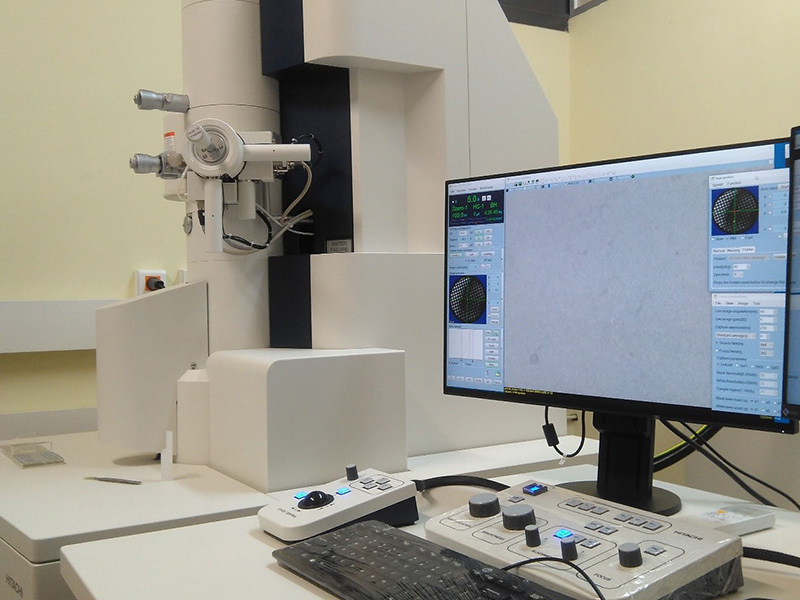

High-contrast 120Kv transmission electron microscope with 20 Mpx CMOS EMSIS XAROSA digital camera.
Description
High-contrast HITACHI HT7800 electron microscope with LaB6 filament.
- Accelerating voltage from 40 to 100Kv.
- Magnifications in high-contrast mode from 200 to 200.000x.
- Magnifications in high-contrast mode from 4000 to 200.000x.
- Magnifications in LOW MAG mode from 50 to 1000x.
- Resolution: 0,2 nm.
- Tilt angle: ±70º.
- Three-sample holder.
EMSIS XAROSA digital camera.
- 20 Mpx CMOS sensor.
- Sensor pixel size: 11 µm.
- Full-field speed and maximum 5 fps resolution.
Practical implementation
- Histological studies at ultrastructural level.
- Morphological and structural characterisation of materials.
Quality certifications
ISO 9001:2015
